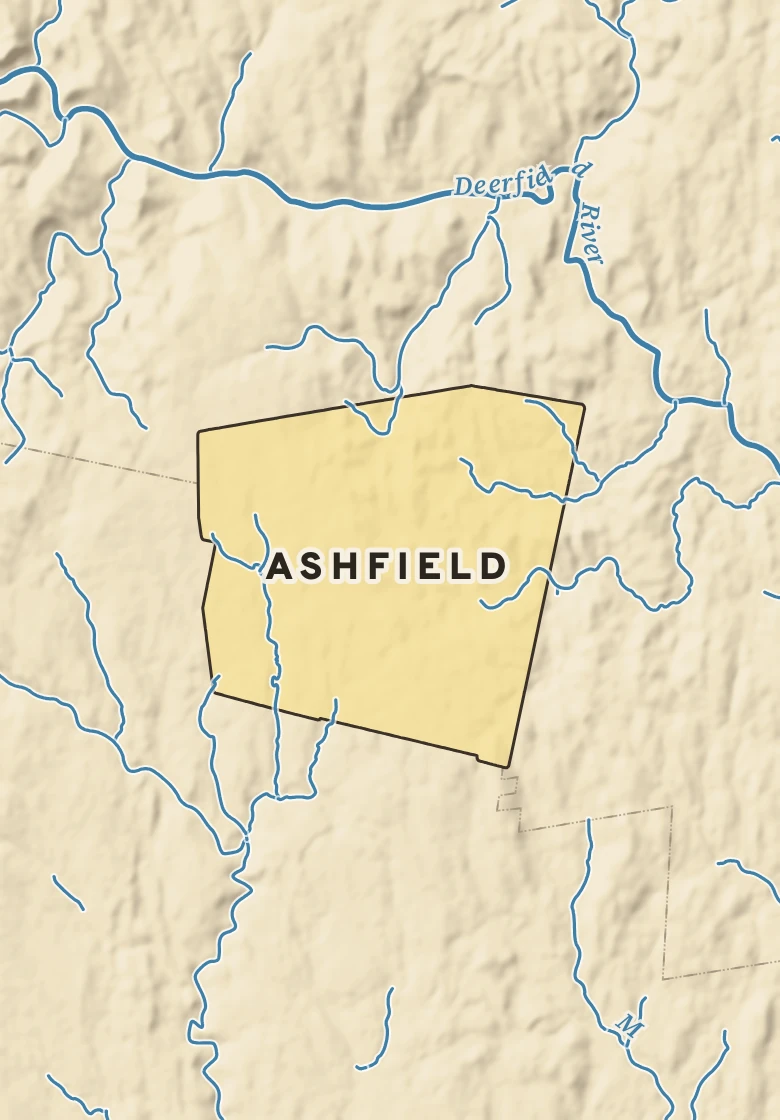

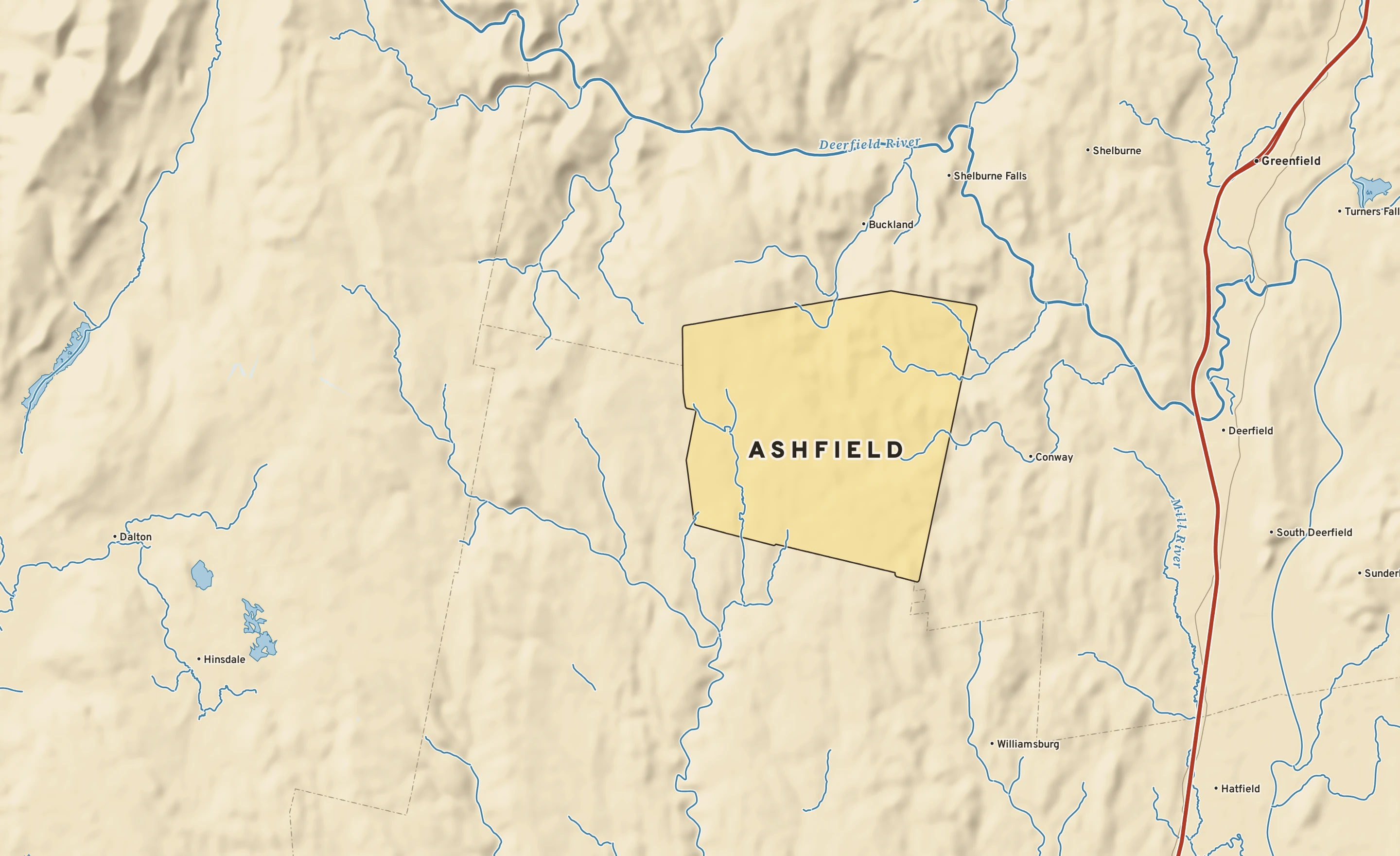

The Ashfield plate. Relief from Copernicus GLO-30; rivers and lakes from USGS NHD; watersheds from the USGS Watershed Boundary Dataset; roads and city limits from Census TIGER 2024.
Mostly cloudy
Mostly cloudy
Partly cloudy
Mostly sunny
Mostly sunny
Partly cloudy
Partly cloudy
Ashfield’s center stands about 1,250 ft above sea level. Within three miles the land runs from 760 ft to 1,770 ft, a difference of 1,010 ft: steep hill country. The highest named summit within 15 miles is Borden Mountain, about 2,520 ft, 13 miles west-northwest.
Under the town center the state geologic map shows Waits River Formation (schist), from the Early Devonian, 394 to 422 million years old.
The section below crosses 14 rock units mapped at the surface.
Heights every 0.1 mile from the Copernicus GLO-90 surface model; vertical exaggeration about 10×. The colored band under the surface is the rock the state geologic map shows at the surface, not a picture of what lies beneath.
Schist. Age: Early Devonian, 394 to 422 million years old. About 8 mi of the line.
Schist. Age: Early Devonian, 394 to 422 million years old. About 4 mi of the line.
Arkose, siltstone, sandstone. Age: Late Triassic, 202 to 237 million years old. About 2 mi of the line.
Granofels, schist. Age: Early Ordovician to Middle Ordovician, 471 to 487 million years old. About 1 mi of the line.
Phyllite, schist. Age: Early Devonian, 394 to 422 million years old. About 1 mi of the line.
Schist. Age: Early Cambrian to Early Ordovician, 471 to 542 million years old. About 1 mi of the line.
From the USGS State Geologic Map Compilation (Horton and others, 2017), the states’ geologic maps joined at a common scale. 8 smaller units along the line are not listed.
Heights from Copernicus GLO-90 (a surface model: it includes buildings and tree canopy); summits from USGS GNIS; rivers from USGS NHDPlus HR; rock from the USGS State Geologic Map Compilation.
A raindrop that lands in Ashfield reaches Long Island Sound and the Atlantic Ocean by way of the South River, the Deerfield and the Connecticut: about 140 river miles.
Traced down the USGS NHDPlus V2.1 river network from the Census center point of Ashfield; river miles along the main stem, rounded.
