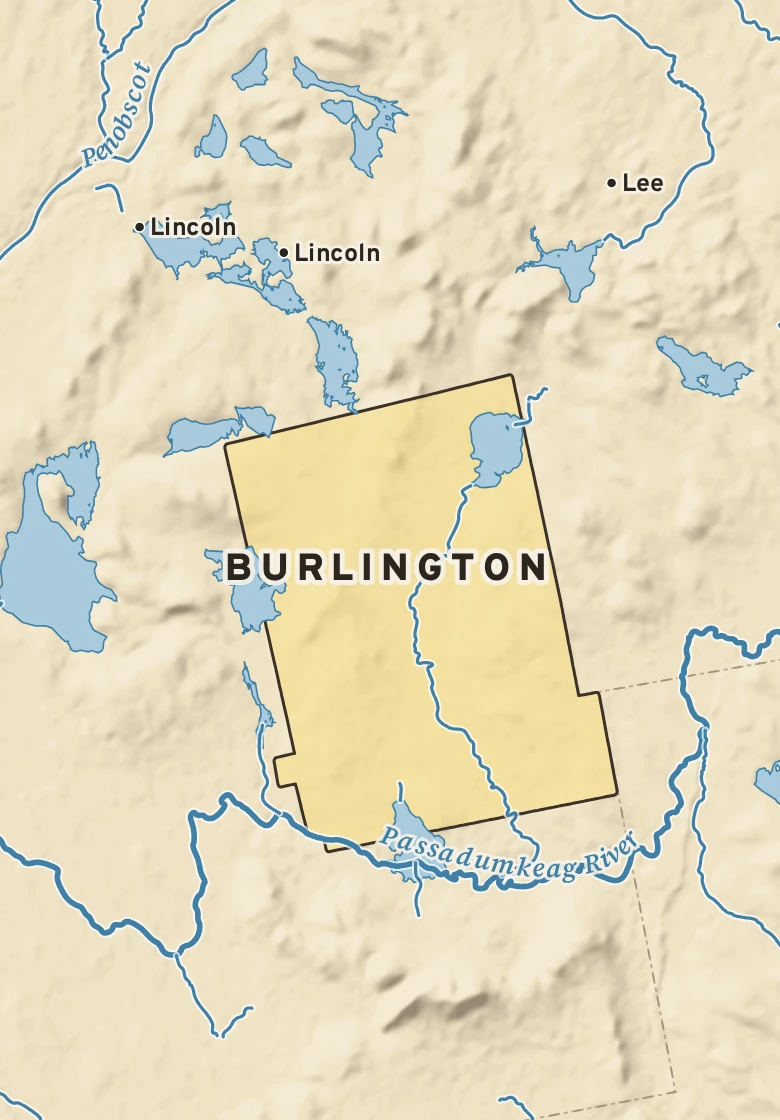

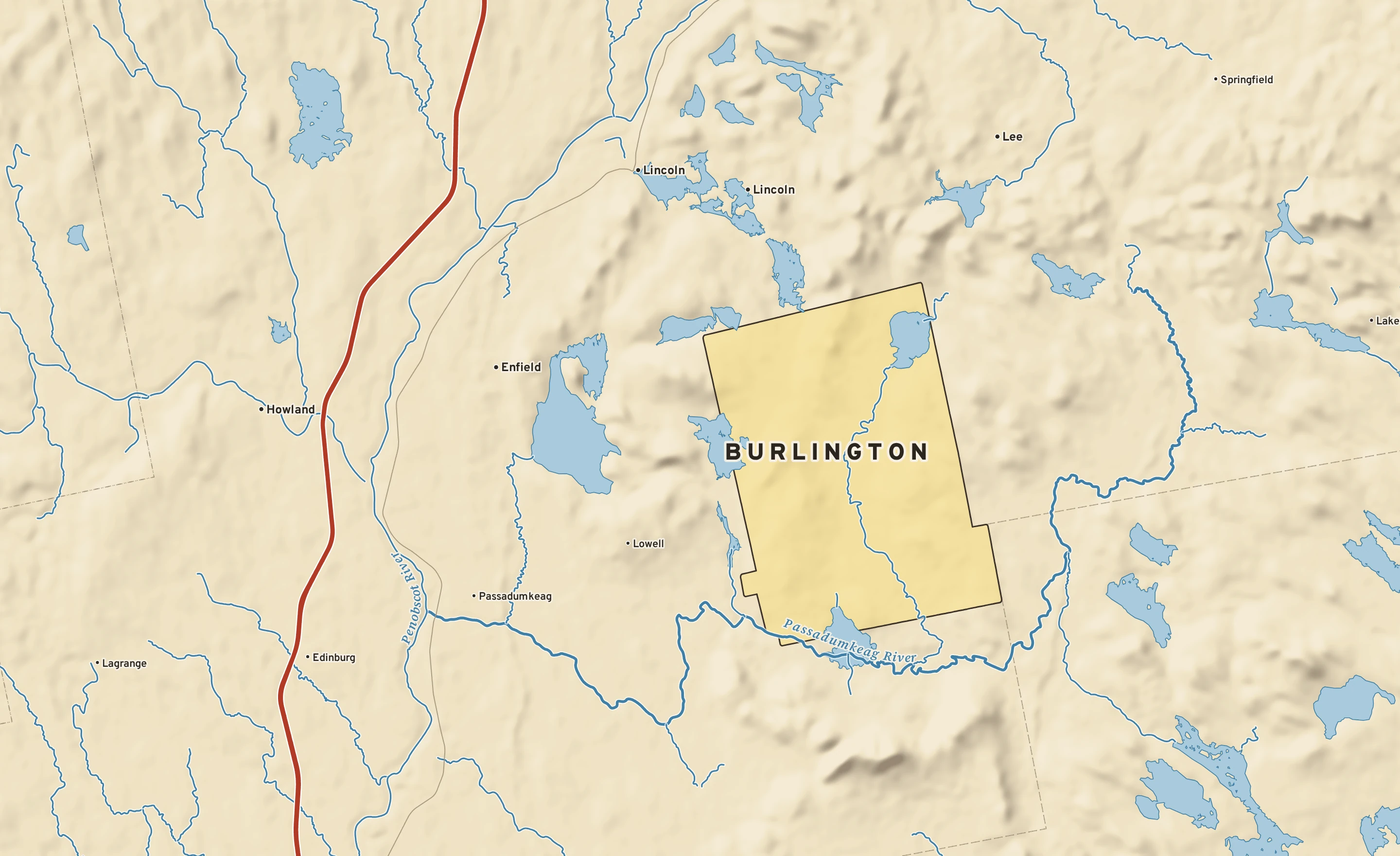

The Burlington plate. Relief from Copernicus GLO-30; rivers and lakes from USGS NHD; watersheds from the USGS Watershed Boundary Dataset; roads and city limits from Census TIGER 2024.
Mostly cloudy
Mostly cloudy
Partly cloudy
Mostly sunny
Partly cloudy
Partly cloudy
Partly cloudy
Burlington’s center stands about 530 ft above sea level. Within three miles the land runs from 180 ft to 690 ft, a difference of 510 ft: hilly country. The highest named summit within 15 miles is Passadumkeag Mountain, about 1,460 ft, 6 miles south-southeast.
Under the town center the state geologic map shows Silurian undifferentiated pelites and sandstones (slate, sandstone), from the Silurian, 422 to 445 million years old.
The section below crosses 7 rock units mapped at the surface.
Heights every 0.1 mile from the Copernicus GLO-90 surface model; vertical exaggeration about 18×. The colored band under the surface is the rock the state geologic map shows at the surface, not a picture of what lies beneath.
Sandstone. Age: Late Ordovician to Silurian, 428 to 459 million years old. About 9 mi of the line.
Granite. Age: Devonian, 359 to 422 million years old. About 5 mi of the line.
Slate, sandstone. Age: Silurian, 422 to 445 million years old. About 5 mi of the line.
Age: Devonian, 359 to 422 million years old. About 3 mi of the line.
Granodiorite. Age: Devonian, 359 to 422 million years old. About 2 mi of the line.
Mafic-volcanic, felsic-volcanic. Age: Ordovician, 445 to 487 million years old. About 0.5 mi of the line.
From the USGS State Geologic Map Compilation (Horton and others, 2017), the states’ geologic maps joined at a common scale. 1 smaller unit along the line are not listed.
Heights from Copernicus GLO-90 (a surface model: it includes buildings and tree canopy); summits from USGS GNIS; rivers from USGS NHDPlus HR; rock from the USGS State Geologic Map Compilation.
A raindrop that lands in Burlington reaches the Atlantic Ocean by way of the Madagascal Stream, the Passadumkeag and the Penobscot: about 85 river miles.
55 miles of the trip are on the Penobscot.
Traced down the USGS NHDPlus V2.1 river network from the Census center point of Burlington; river miles along the main stem, rounded.
