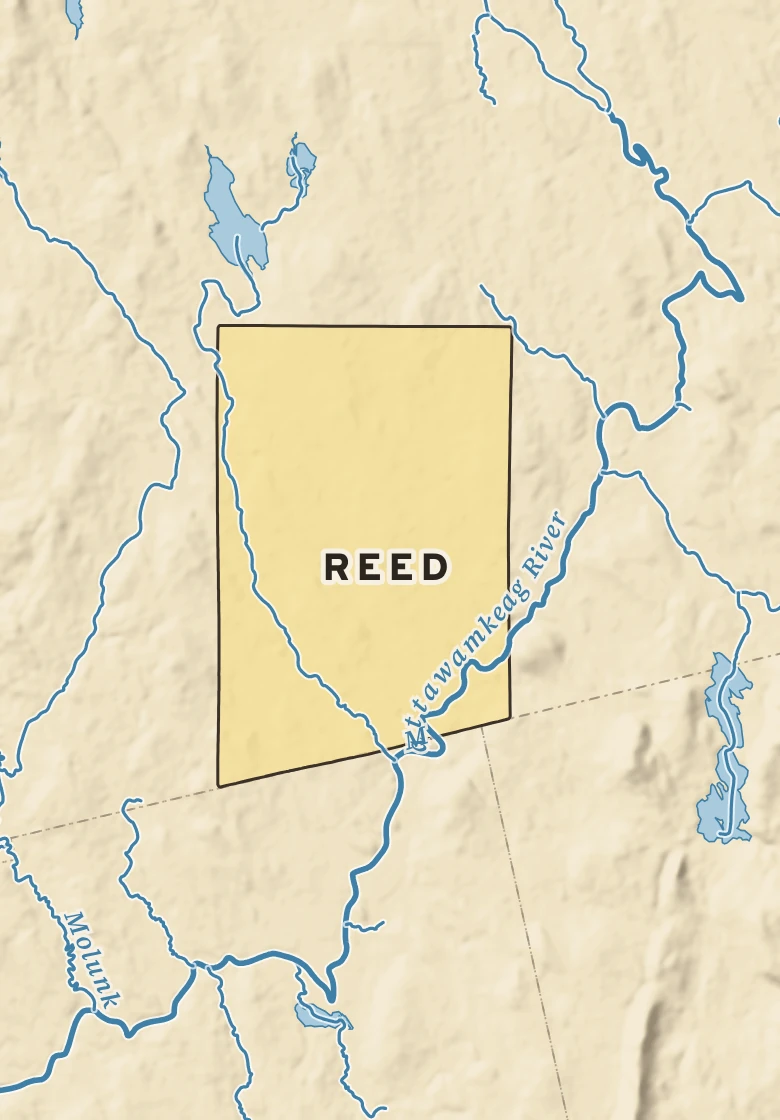

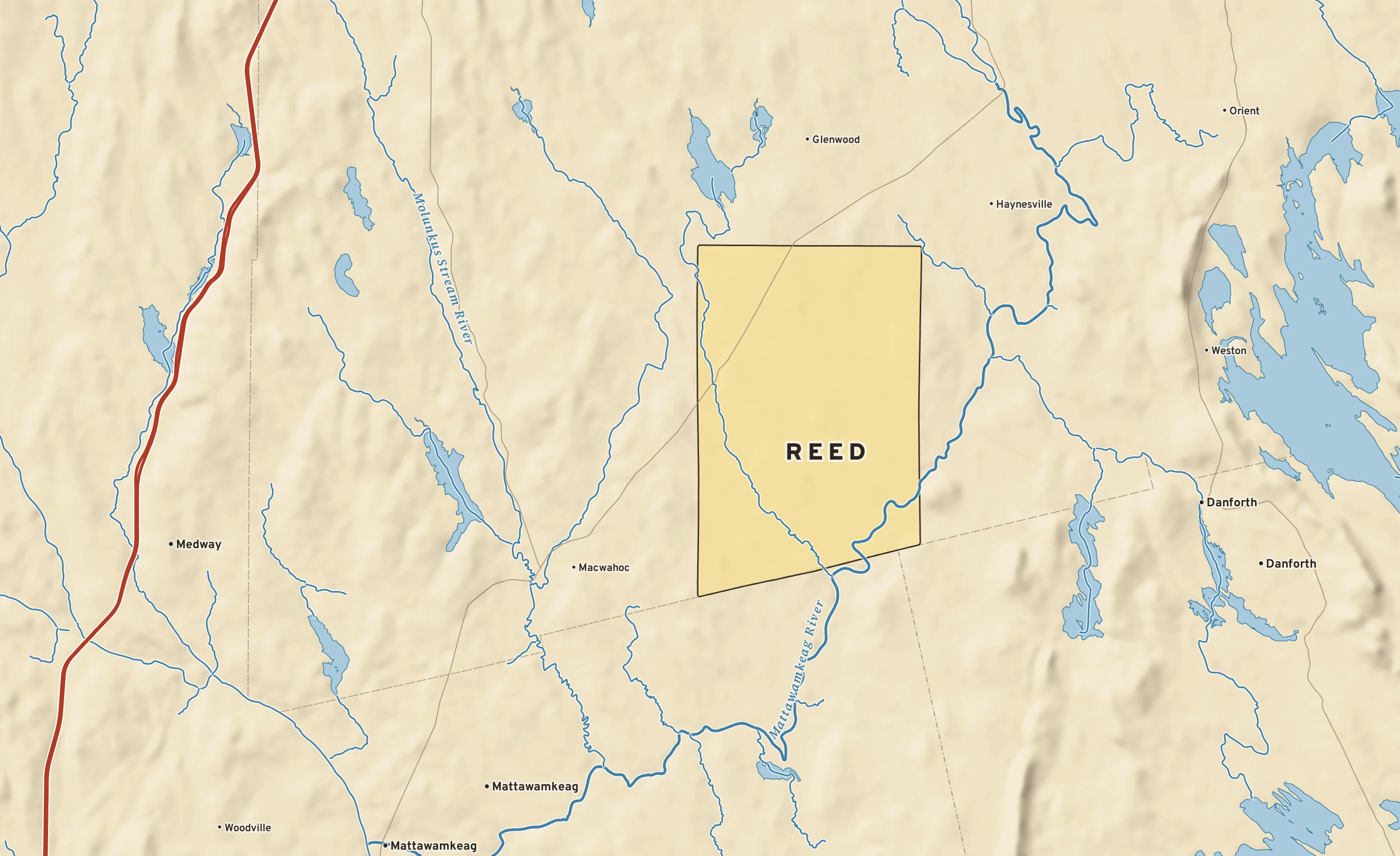

The Reed plate. Relief from Copernicus GLO-30; rivers and lakes from USGS NHD; watersheds from the USGS Watershed Boundary Dataset; roads and city limits from Census TIGER 2024.
Mostly cloudy
Mostly cloudy
Partly cloudy
Mostly sunny
Partly cloudy
Mostly sunny
Partly cloudy
Reed’s center stands about 550 ft above sea level. Within three miles the land runs from 390 ft to 640 ft, a difference of 250 ft: rolling country. The highest named summit within 15 miles is Peekaboo Mountain, about 1,090 ft, 13 miles east.
Under the town center the state geologic map shows Devonian - Silurian Madrid Formation (quartzite, calc-silicate-rock), from the Silurian to Devonian, 359 to 445 million years old.
The section below crosses 6 rock units mapped at the surface.
Heights every 0.1 mile from the Copernicus GLO-90 surface model; vertical exaggeration about 41×. The colored band under the surface is the rock the state geologic map shows at the surface, not a picture of what lies beneath.
Quartzite, calc-silicate-rock. Age: Silurian to Devonian, 359 to 445 million years old. About 15 mi of the line.
Conglomerate. Age: Late Ordovician to Silurian, 422 to 459 million years old. About 3 mi of the line.
Slate, sandstone. Age: Silurian, 422 to 445 million years old. About 3 mi of the line.
Slate. Age: Ordovician, 445 to 487 million years old. About 2 mi of the line.
Limestone. Age: Silurian, 422 to 445 million years old. About 0.9 mi of the line.
Sandstone. Age: Silurian, 422 to 445 million years old. About 0.4 mi of the line.
From the USGS State Geologic Map Compilation (Horton and others, 2017), the states’ geologic maps joined at a common scale.
Heights from Copernicus GLO-90 (a surface model: it includes buildings and tree canopy); summits from USGS GNIS; rivers from USGS NHDPlus HR; rock from the USGS State Geologic Map Compilation.
A raindrop that lands in Reed reaches the Atlantic Ocean by way of the Mattawamkeag and the Penobscot: about 110 river miles.
85 miles of the trip are on the Penobscot.
Traced down the USGS NHDPlus V2.1 river network from the Census center point of Reed; river miles along the main stem, rounded.
