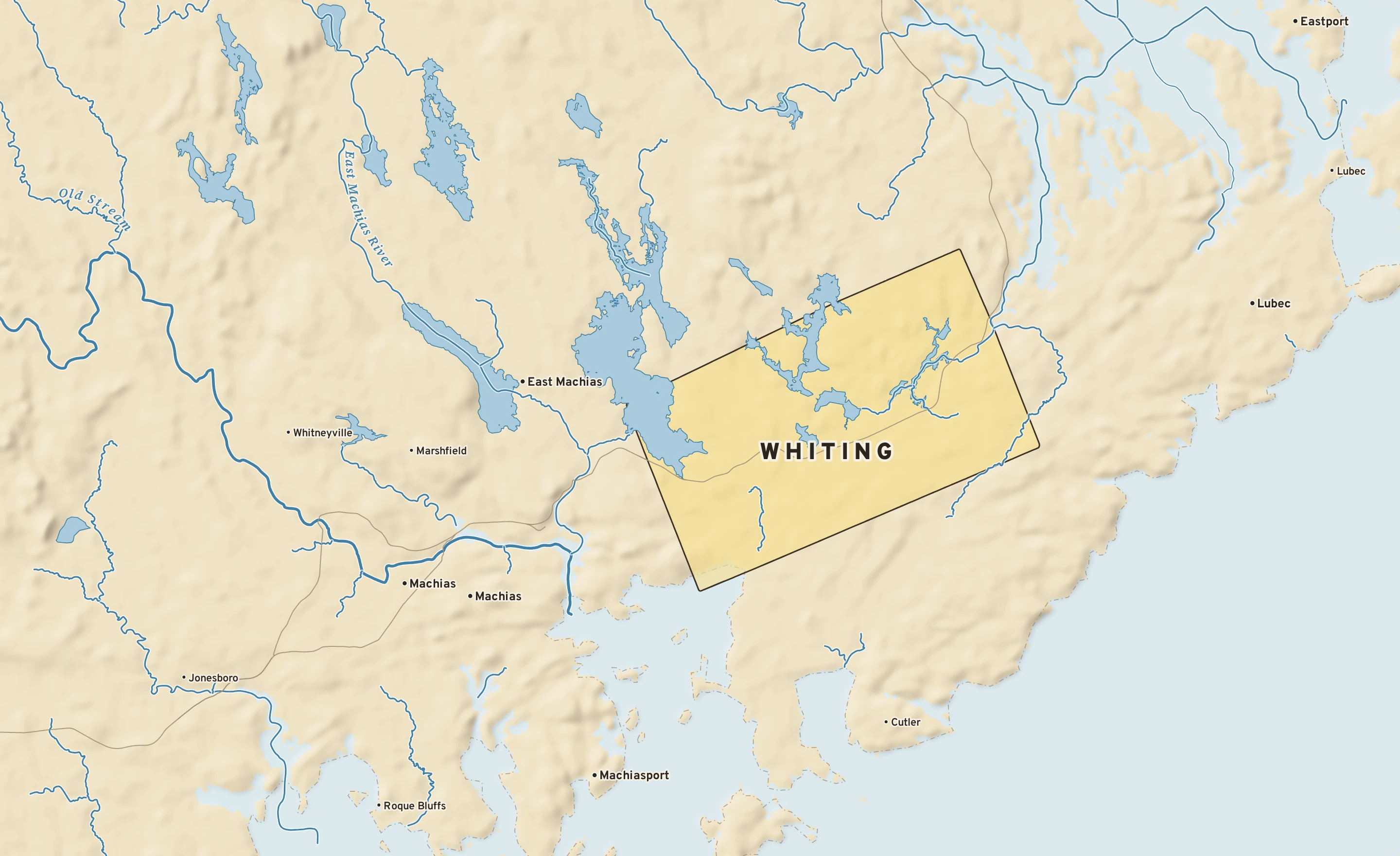

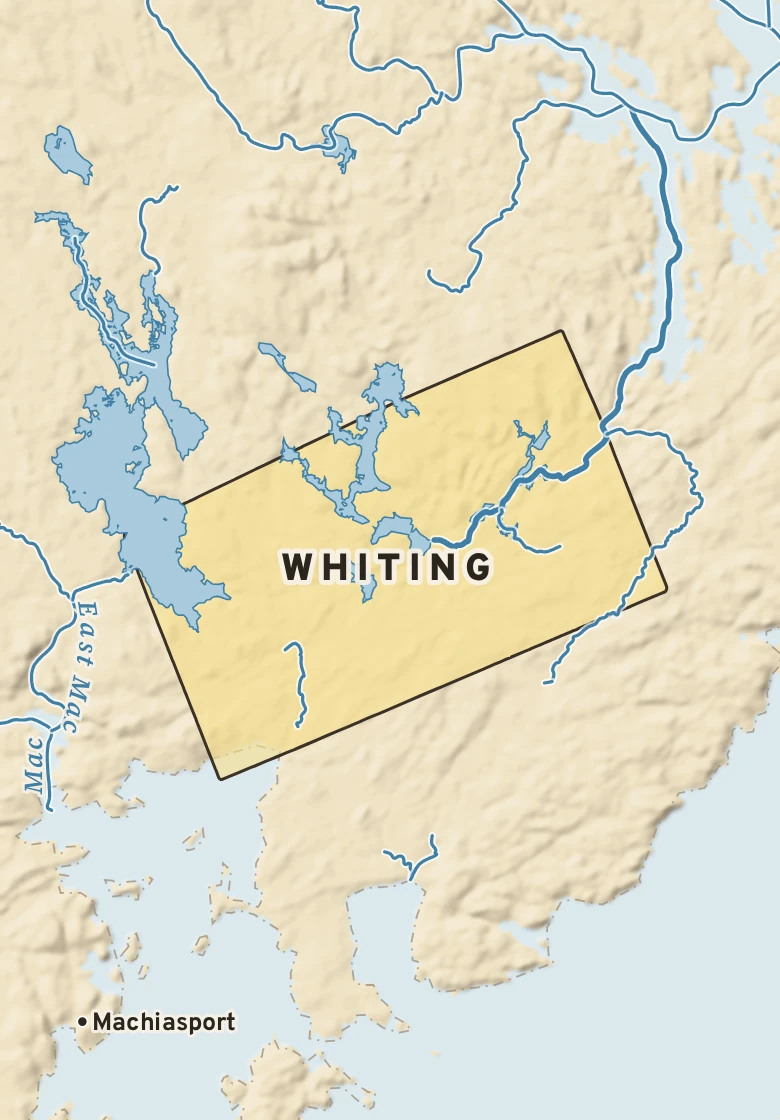

The Whiting plate. Relief from Copernicus GLO-30; rivers and lakes from USGS NHD; watersheds from the USGS Watershed Boundary Dataset; roads and city limits from Census TIGER 2024.
Mostly cloudy
Mostly cloudy
Mostly sunny
Partly cloudy
Partly cloudy
Mostly sunny
Partly cloudy
Whiting’s center stands about 150 ft above sea level. Within three miles the land runs from 60 ft to 230 ft, a difference of 170 ft: gently rolling country. The highest named summit within 15 miles is Big Allan Mountain, about 440 ft, 14 miles north-northwest.
Under the town center the state geologic map shows Silurian Dennys Formation, mafic to felsic volcanic rock member (mafic-volcanic, felsic-volcanic), from the Silurian, 422 to 445 million years old.
The section below crosses 9 rock units mapped at the surface.
Heights every 0.1 mile from the Copernicus GLO-90 surface model; vertical exaggeration about 51×. The colored band under the surface is the rock the state geologic map shows at the surface, not a picture of what lies beneath.
Mafic-volcanic, felsic-volcanic. Age: Silurian, 422 to 445 million years old. About 3 mi of the line.
Felsic-volcanic, mafic-volcanic. Age: Silurian, 422 to 445 million years old. About 3 mi of the line.
Age: Devonian, 359 to 422 million years old. About 3 mi of the line.
Granite. Age: Devonian, 359 to 422 million years old. About 2 mi of the line.
Basalt. Age: Silurian, 422 to 445 million years old. About 2 mi of the line.
Felsic-volcanic, mafic-volcanic. Age: Devonian, 359 to 422 million years old. About 2 mi of the line.
From the USGS State Geologic Map Compilation (Horton and others, 2017), the states’ geologic maps joined at a common scale. 3 smaller units along the line are not listed.
Heights from Copernicus GLO-90 (a surface model: it includes buildings and tree canopy); summits from USGS GNIS; rivers from USGS NHDPlus HR; rock from the USGS State Geologic Map Compilation.
A raindrop that lands in Whiting reaches the Atlantic Ocean by way of the Orange: about 5 river miles.
Traced down the USGS NHDPlus V2.1 river network from the Census center point of Whiting; river miles along the main stem, rounded.
