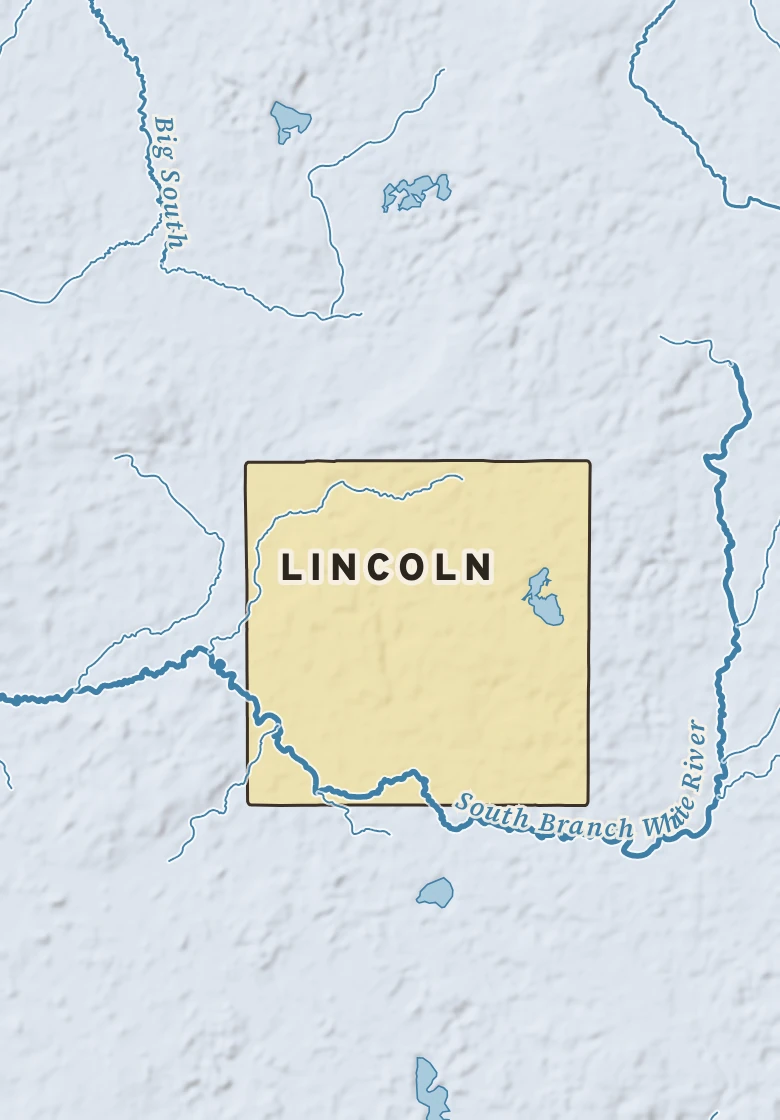

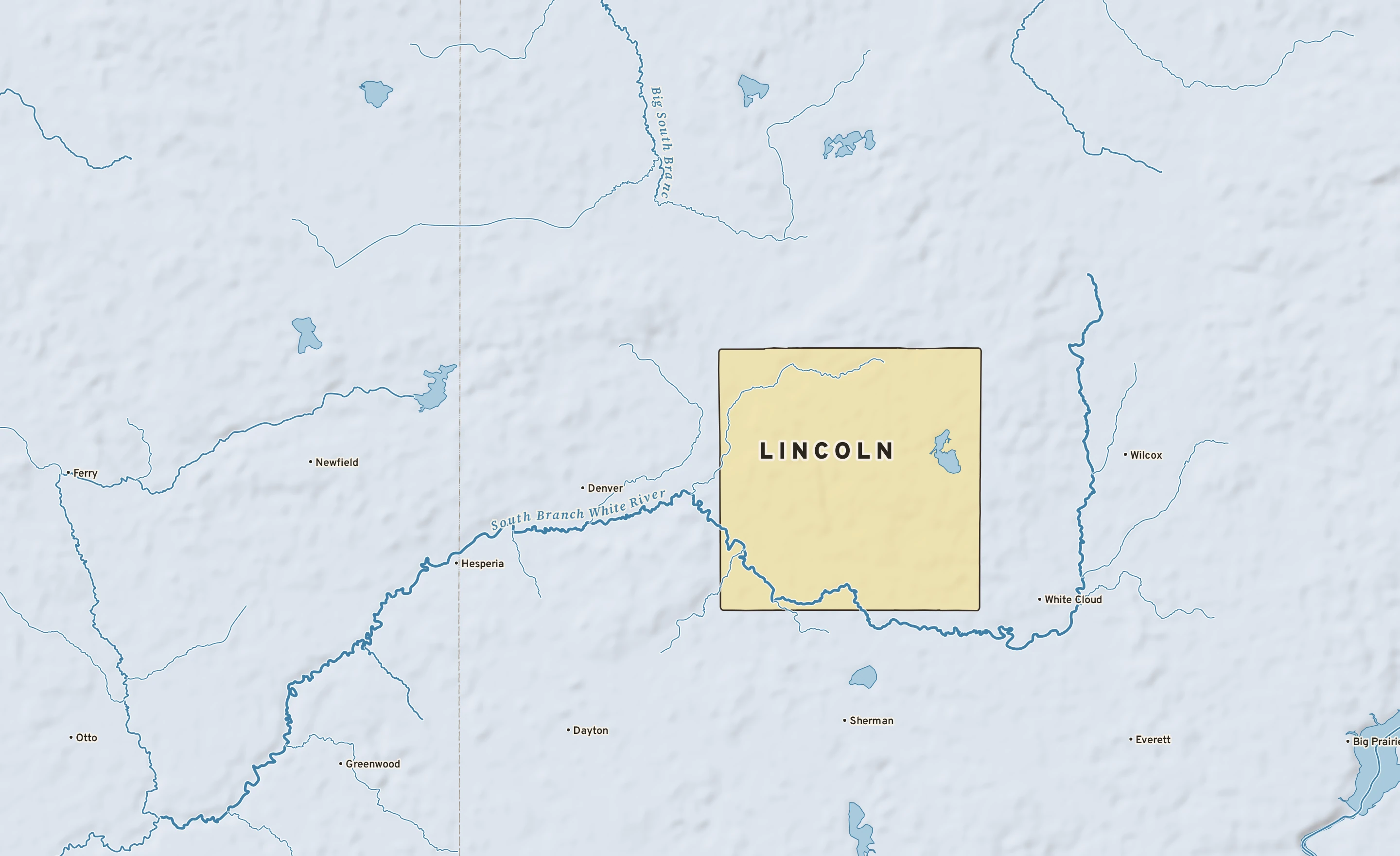

The Lincoln plate. Relief from Copernicus GLO-30; rivers and lakes from USGS NHD; watersheds from the USGS Watershed Boundary Dataset; roads and city limits from Census TIGER 2024.
Mostly cloudy
Partly cloudy; warmer
Mostly sunny
Mostly sunny
Partly cloudy
Partly cloudy
Partly cloudy
Lincoln’s center stands about 1,020 ft above sea level. Within three miles the land runs from 780 ft to 1,060 ft, a difference of 280 ft: rolling country.
Under the town center the state geologic map shows Michigan Formation (shale), from the Carboniferous, 324 to 359 million years old.
The section below crosses 4 rock units mapped at the surface.
Heights every 0.1 mile from the Copernicus GLO-90 surface model; vertical exaggeration about 43×. The colored band under the surface is the rock the state geologic map shows at the surface, not a picture of what lies beneath.
Shale. Age: Carboniferous, 324 to 359 million years old. About 16 mi of the line.
Sandstone, shale. Age: Carboniferous, 299 to 324 million years old. About 5 mi of the line.
Limestone. Age: Carboniferous, 324 to 359 million years old. About 2 mi of the line.
Shale. Age: Jurassic, 145 to 202 million years old. About 2 mi of the line.
From the USGS State Geologic Map Compilation (Horton and others, 2017), the states’ geologic maps joined at a common scale.
Heights from Copernicus GLO-90 (a surface model: it includes buildings and tree canopy); summits from USGS GNIS; rivers from USGS NHDPlus HR; rock from the USGS State Geologic Map Compilation.
A raindrop that lands in Lincoln reaches Lake Michigan by way of the South Branch White and the White River: about 55 river miles. From there it moves on through the Great Lakes, over Niagara Falls and down the St. Lawrence to the Atlantic.
Lake on the way: White Lake.
Traced down the USGS NHDPlus V2.1 river network from the Census center point of Lincoln; river miles along the main stem, rounded.
