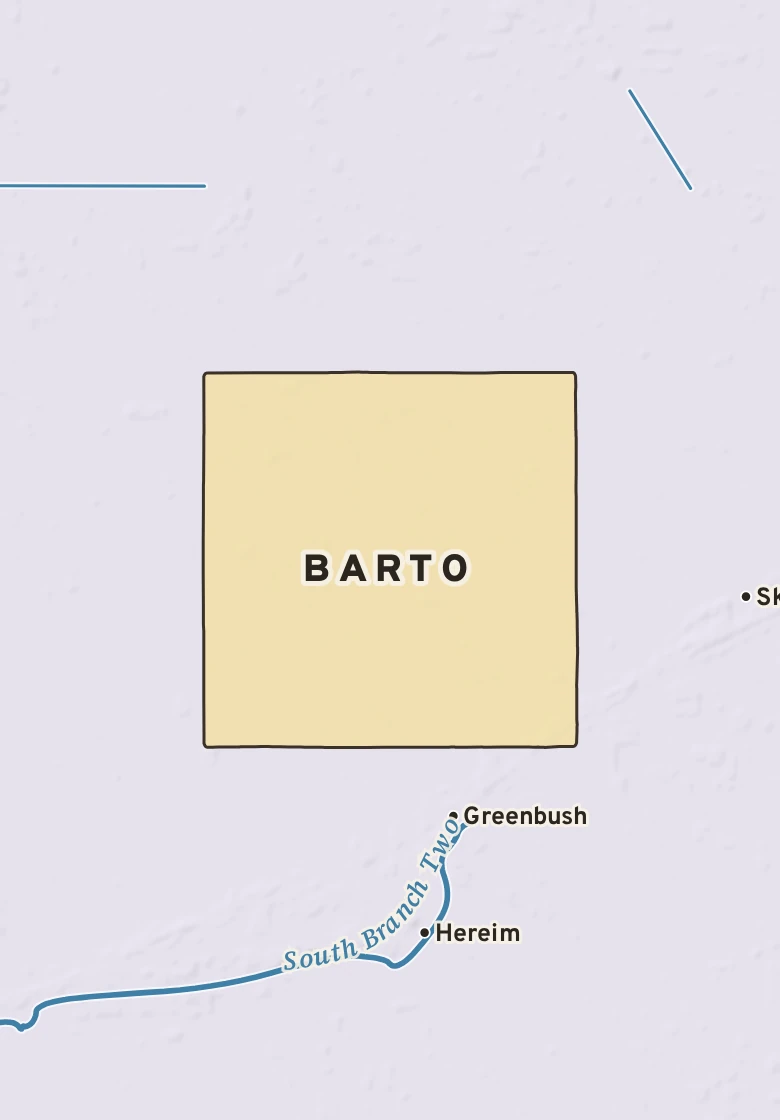

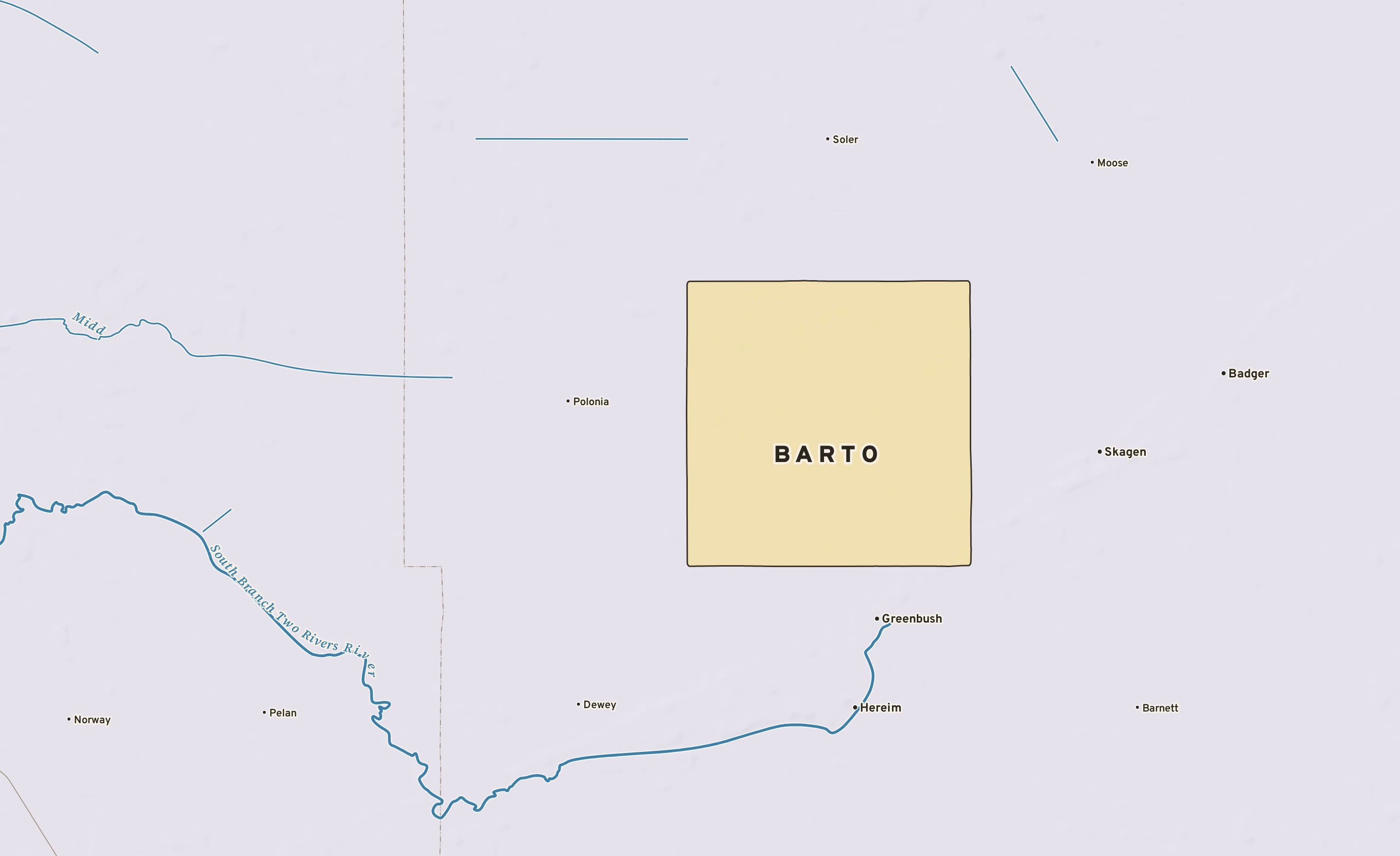

The Barto plate. Relief from Copernicus GLO-30; rivers and lakes from USGS NHD; watersheds from the USGS Watershed Boundary Dataset; roads and city limits from Census TIGER 2024.
Partly cloudy
Mostly sunny; warmer
Partly cloudy
Mostly cloudy
Showers likely
Mostly cloudy
Chance of showers
Barto’s center stands about 1,030 ft above sea level. Within three miles the land runs from 1,020 ft to 1,050 ft, a difference of 30 ft: nearly flat ground.
Under the town center the state geologic map shows Schist and tonalitic to granodioritic paragneiss (schist, paragneiss), from the Neoarchean, 2.5 to 2.8 billion years old.
The section below crosses 2 rock units mapped at the surface.
Heights every 0.1 mile from the Copernicus GLO-90 surface model; vertical exaggeration about 64×. The colored band under the surface is the rock the state geologic map shows at the surface, not a picture of what lies beneath.
Schist, paragneiss. Age: Neoarchean, 2.5 to 2.8 billion years old. About 18 mi of the line.
Granodiorite, diorite. Age: Neoarchean, 2.5 to 2.8 billion years old. About 6 mi of the line.
From the USGS State Geologic Map Compilation (Horton and others, 2017), the states’ geologic maps joined at a common scale.
Heights from Copernicus GLO-90 (a surface model: it includes buildings and tree canopy); summits from USGS GNIS; rivers from USGS NHDPlus HR; rock from the USGS State Geologic Map Compilation.
A raindrop that lands in Barto reaches Hudson Bay by way of the South Branch Two Rivers, the Two Rivers, the Red River of the North and the Nelson: about 900 river miles. Past the border it runs north through Canada to Hudson Bay.
Lake on the way: Lake Winnipeg.
400 miles of the trip are on the Nelson.
Traced down the USGS NHDPlus V2.1 river network from the Census center point of Barto; river miles along the main stem, rounded.
