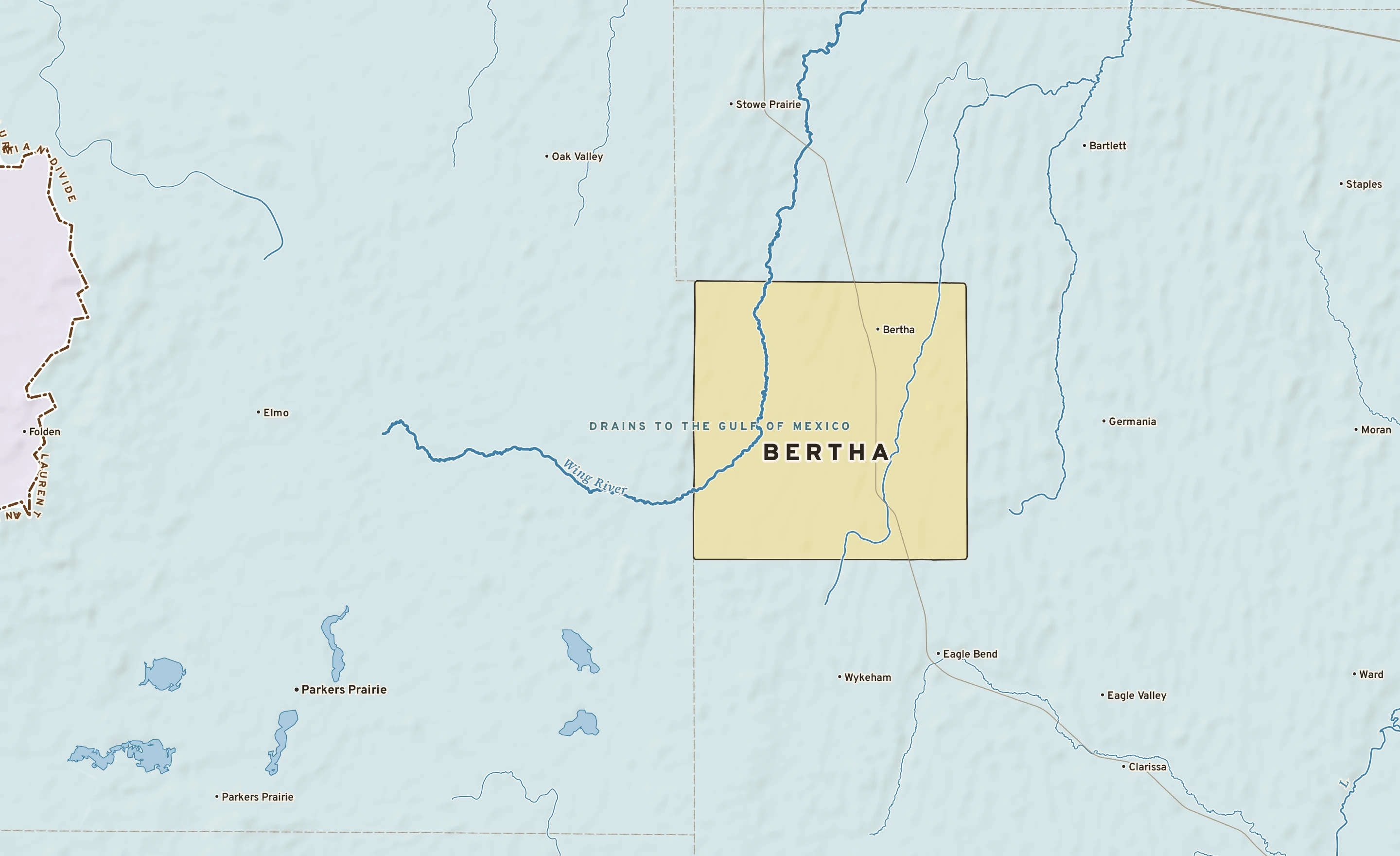

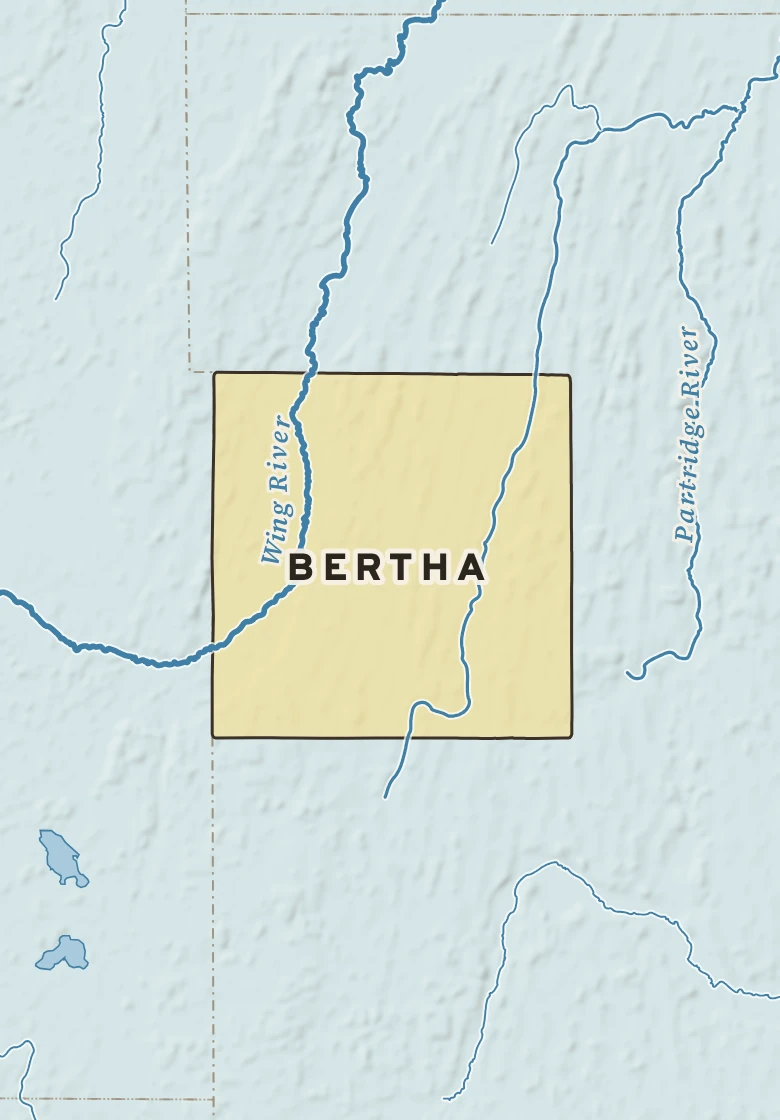

The Bertha plate. Relief from Copernicus GLO-30; rivers and lakes from USGS NHD; watersheds from the USGS Watershed Boundary Dataset; roads and city limits from Census TIGER 2024.
Mostly sunny
Mostly sunny; warmer
Mostly sunny
Mostly cloudy
Chance of showers
Partly cloudy
Showers likely
Bertha’s center stands about 1,400 ft above sea level. Within three miles the land runs from 1,370 ft to 1,470 ft, a difference of 100 ft: gently rolling country.
Under the town center the state geologic map shows Granitic intrusion of unknown age, from the Archean to Paleoproterozoic.
The section below crosses 8 rock units mapped at the surface.
Heights every 0.1 mile from the Copernicus GLO-90 surface model; vertical exaggeration about 64×. The colored band under the surface is the rock the state geologic map shows at the surface, not a picture of what lies beneath.
Schist. Age: Neoarchean, 2.5 to 2.8 billion years old. About 9 mi of the line.
Granitic. Age: Archean to Paleoproterozoic. About 8 mi of the line.
Felsic-volcanic. Age: Neoarchean, 2.5 to 2.8 billion years old. About 5 mi of the line.
Metabasalt, greenstone. Age: Neoarchean, 2.5 to 2.8 billion years old. About 0.6 mi of the line.
Conglomerate, sandstone, mudstone. Age: Late Cretaceous, 72 to 100 million years old. About 0.5 mi of the line.
Schist, paragneiss. Age: Neoarchean, 2.5 to 2.8 billion years old. About 0.5 mi of the line.
From the USGS State Geologic Map Compilation (Horton and others, 2017), the states’ geologic maps joined at a common scale. 2 smaller units along the line are not listed.
Heights from Copernicus GLO-90 (a surface model: it includes buildings and tree canopy); summits from USGS GNIS; rivers from USGS NHDPlus HR; rock from the USGS State Geologic Map Compilation.
A raindrop that lands in Bertha reaches the Gulf of America by way of the Little Partridge, the Partridge, the Crow Wing and the Mississippi: about 2,030 river miles.
Lake on the way: Lake Pepin.
Traced down the USGS NHDPlus V2.1 river network from the Census center point of Bertha; river miles along the main stem, rounded.
