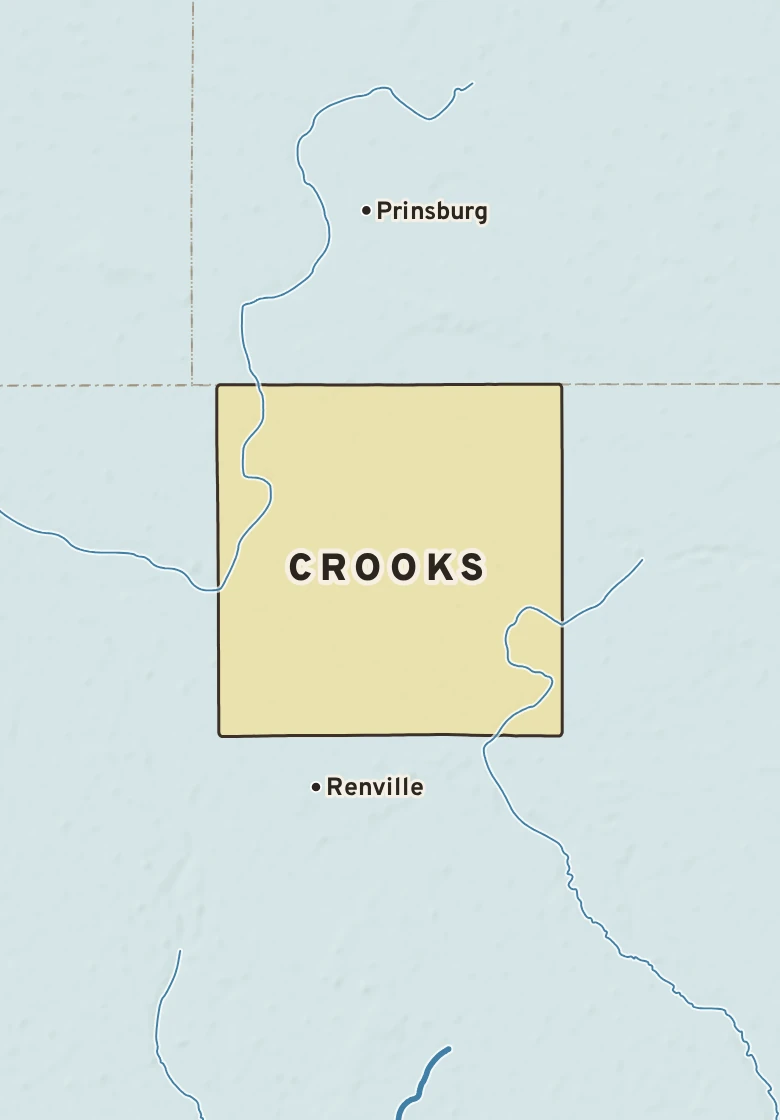

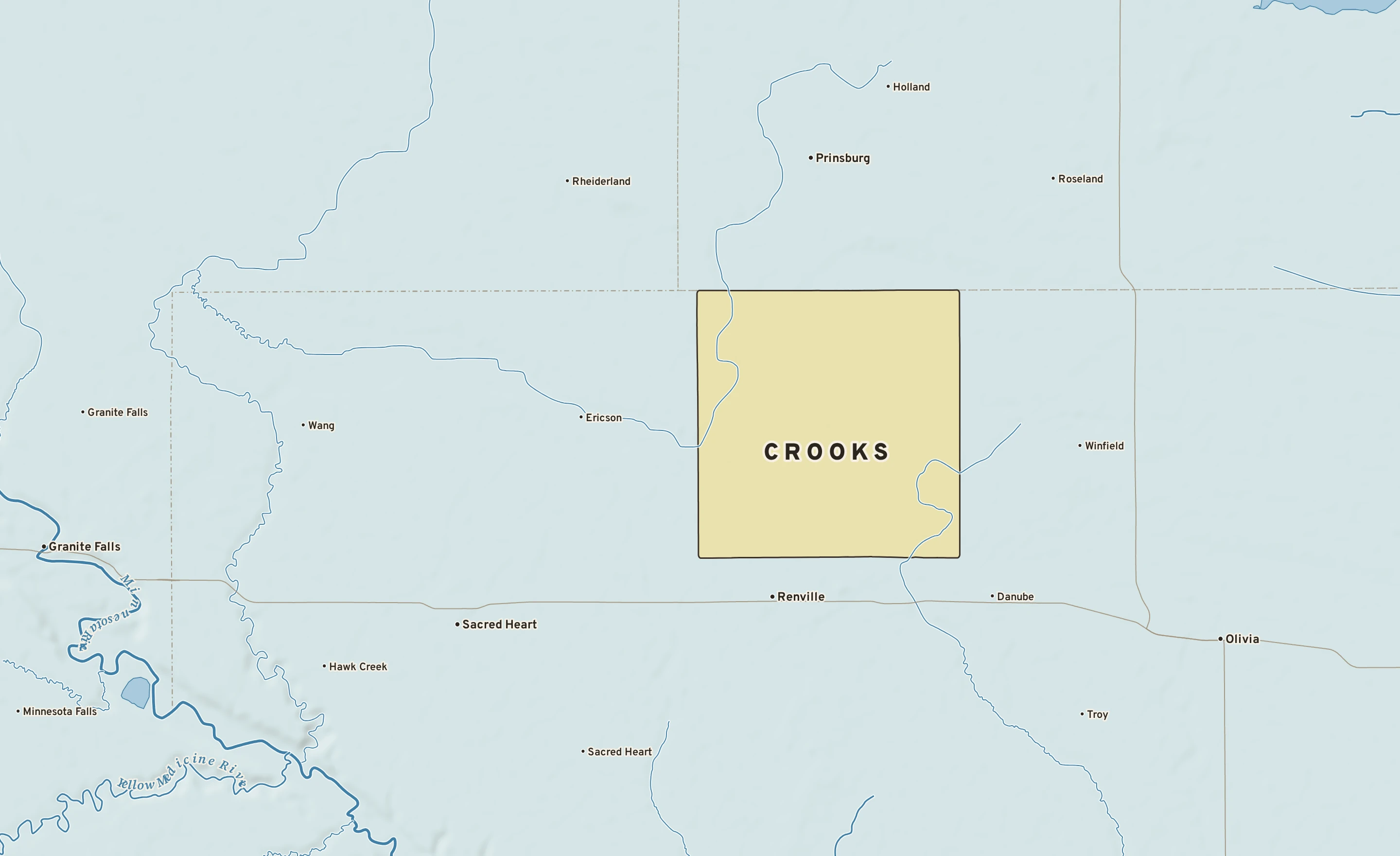

The Crooks plate. Relief from Copernicus GLO-30; rivers and lakes from USGS NHD; watersheds from the USGS Watershed Boundary Dataset; roads and city limits from Census TIGER 2024.
Mostly sunny
Mostly sunny
Mostly sunny
Partly cloudy
Mostly cloudy
Partly cloudy
Showers likely
Crooks’s center stands about 1,080 ft above sea level. Within three miles the land runs from 1,050 ft to 1,100 ft, a difference of 50 ft: nearly flat ground.
Under the town center the state geologic map shows Granitic orthogneiss and migmatite (orthogneiss, migmatite), from the Paleoarchean to Mesoarchean, 2.8 to 3.6 billion years old.
The section below crosses 5 rock units mapped at the surface.
Heights every 0.1 mile from the Copernicus GLO-90 surface model; vertical exaggeration about 64×. The colored band under the surface is the rock the state geologic map shows at the surface, not a picture of what lies beneath.
Orthogneiss, migmatite. Age: Paleoarchean to Mesoarchean, 2.8 to 3.6 billion years old. About 12 mi of the line.
Leucocratic-granitic. Age: Neoarchean, 2.5 to 2.8 billion years old. About 4 mi of the line.
Mafic-volcanic, hypabyssal. Age: Archean to Paleoproterozoic. About 3 mi of the line.
Gabbroic, dioritic. Age: Archean to Paleoproterozoic. About 3 mi of the line.
Granitic. Age: Neoarchean, 2.5 to 2.8 billion years old. About 2 mi of the line.
From the USGS State Geologic Map Compilation (Horton and others, 2017), the states’ geologic maps joined at a common scale.
Heights from Copernicus GLO-90 (a surface model: it includes buildings and tree canopy); summits from USGS GNIS; rivers from USGS NHDPlus HR; rock from the USGS State Geologic Map Compilation.
A raindrop that lands in Crooks reaches the Gulf of America by way of West Fork Beaver Creek, Beaver Creek, the Minnesota and the Mississippi: about 2,070 river miles.
Lake on the way: Lake Pepin.
1,750 miles of the trip are on the Mississippi.
Traced down the USGS NHDPlus V2.1 river network from the Census center point of Crooks; river miles along the main stem, rounded.
