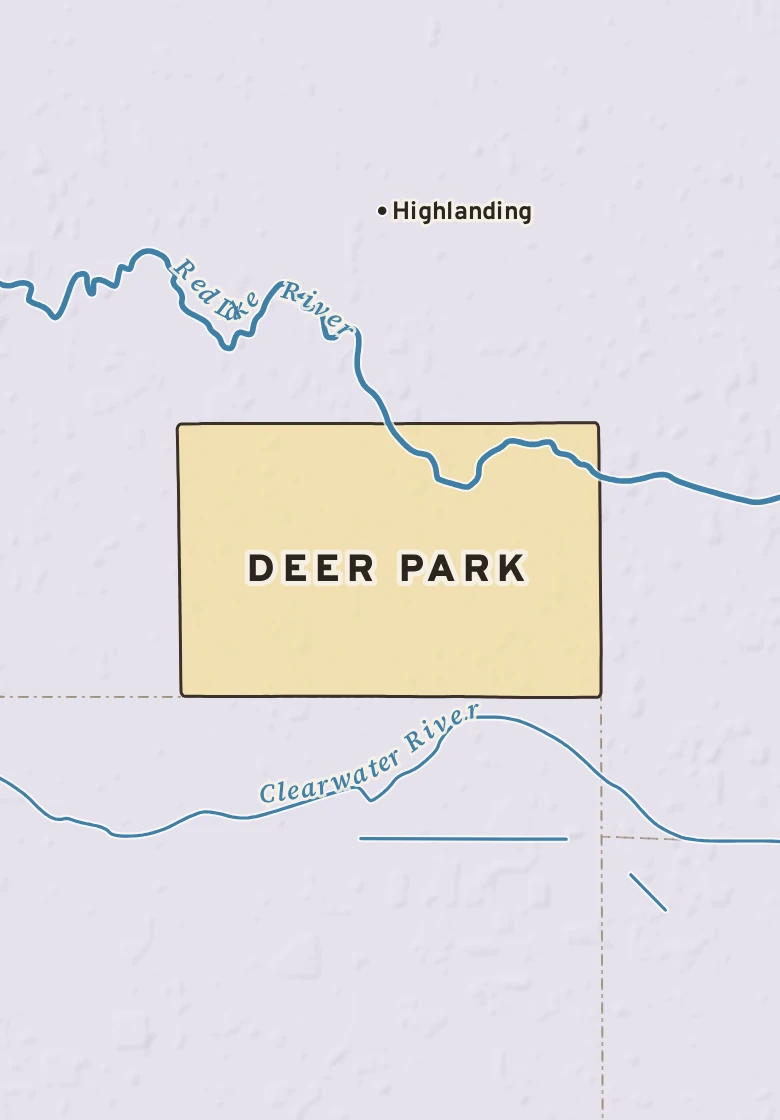

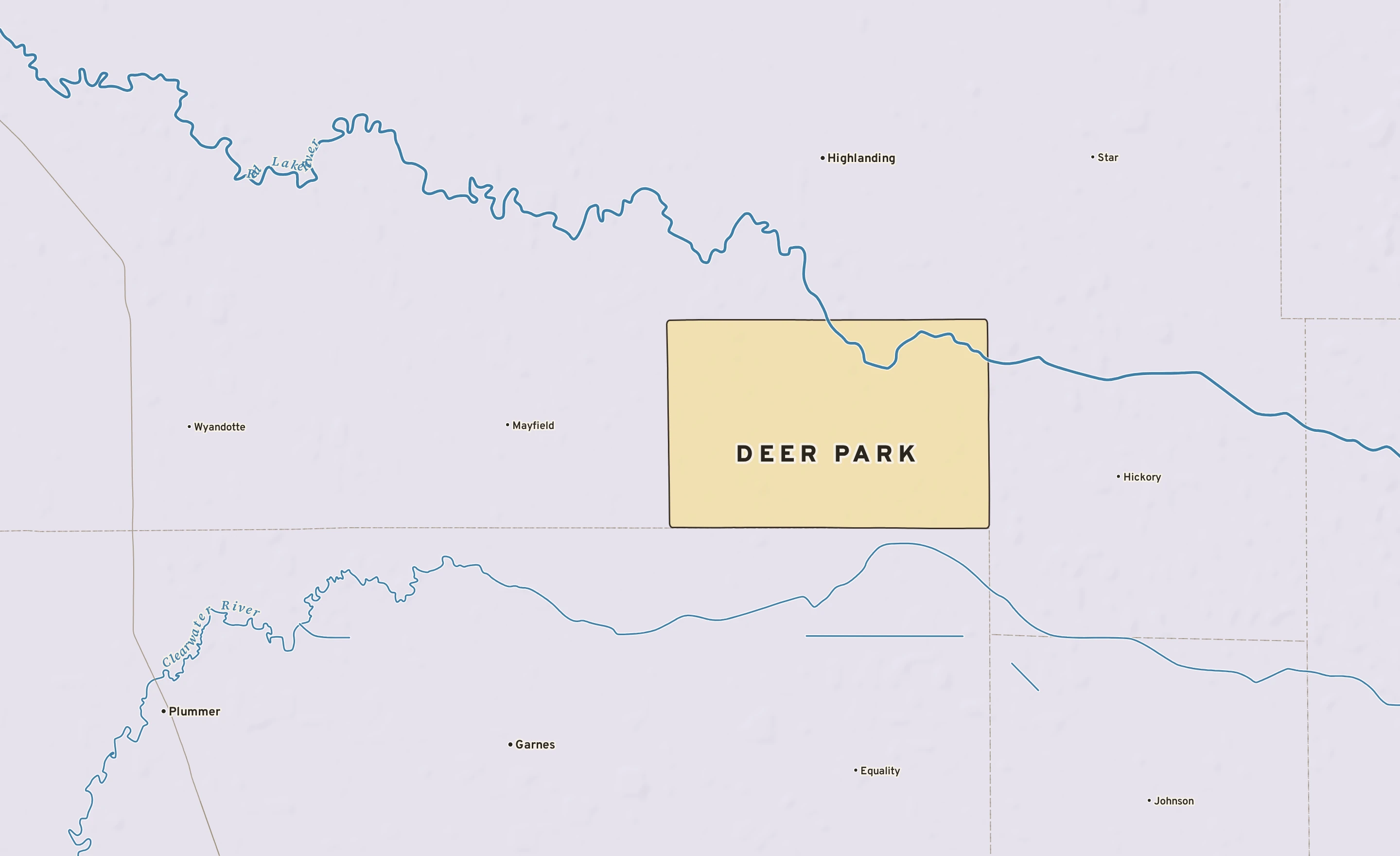

The Deer Park plate. Relief from Copernicus GLO-30; rivers and lakes from USGS NHD; watersheds from the USGS Watershed Boundary Dataset; roads and city limits from Census TIGER 2024.
Mostly sunny
Mostly sunny; warmer
Partly cloudy
Mostly cloudy
Chance of showers
Mostly cloudy; cooler
Chance of showers
Deer Park’s center stands about 1,150 ft above sea level. Within three miles the land runs from 1,150 ft to 1,180 ft, a difference of 30 ft: nearly flat ground.
Under the town center the state geologic map shows Undifferentiated (conglomerate, sandstone, mudstone), from the Late Cretaceous, 72 to 100 million years old.
The section below crosses 3 rock units mapped at the surface.
Heights every 0.1 mile from the Copernicus GLO-90 surface model; vertical exaggeration about 64×. The colored band under the surface is the rock the state geologic map shows at the surface, not a picture of what lies beneath.
Conglomerate, sandstone, mudstone. Age: Late Cretaceous, 72 to 100 million years old. About 17 mi of the line.
Metabasalt, greenstone. Age: Neoarchean, 2.5 to 2.8 billion years old. About 4 mi of the line.
Felsic-volcanic. Age: Neoarchean, 2.5 to 2.8 billion years old. About 4 mi of the line.
From the USGS State Geologic Map Compilation (Horton and others, 2017), the states’ geologic maps joined at a common scale.
Heights from Copernicus GLO-90 (a surface model: it includes buildings and tree canopy); summits from USGS GNIS; rivers from USGS NHDPlus HR; rock from the USGS State Geologic Map Compilation.
A raindrop that lands in Deer Park reaches Hudson Bay by way of the Clearwater, the Red Lake, the Red River of the North and the Nelson: about 1,100 river miles. Past the border it runs north through Canada to Hudson Bay.
Lake on the way: Lake Winnipeg.
400 miles of the trip are on the Nelson.
Traced down the USGS NHDPlus V2.1 river network from the Census center point of Deer Park; river miles along the main stem, rounded.
