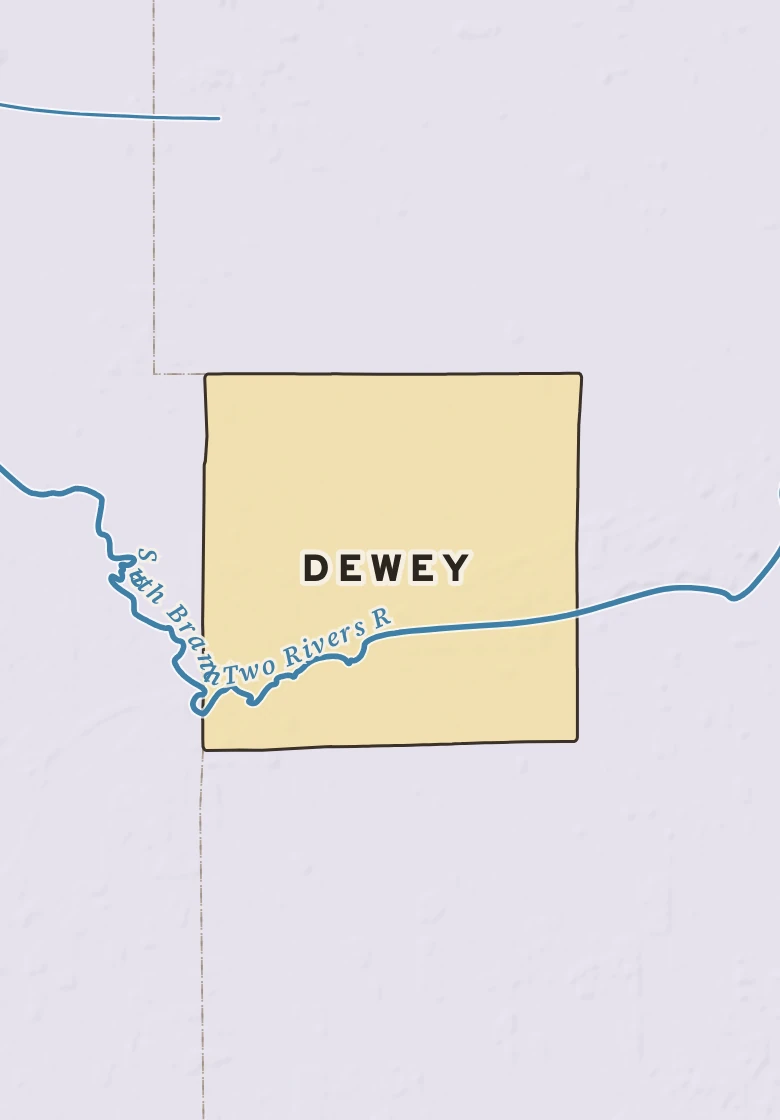

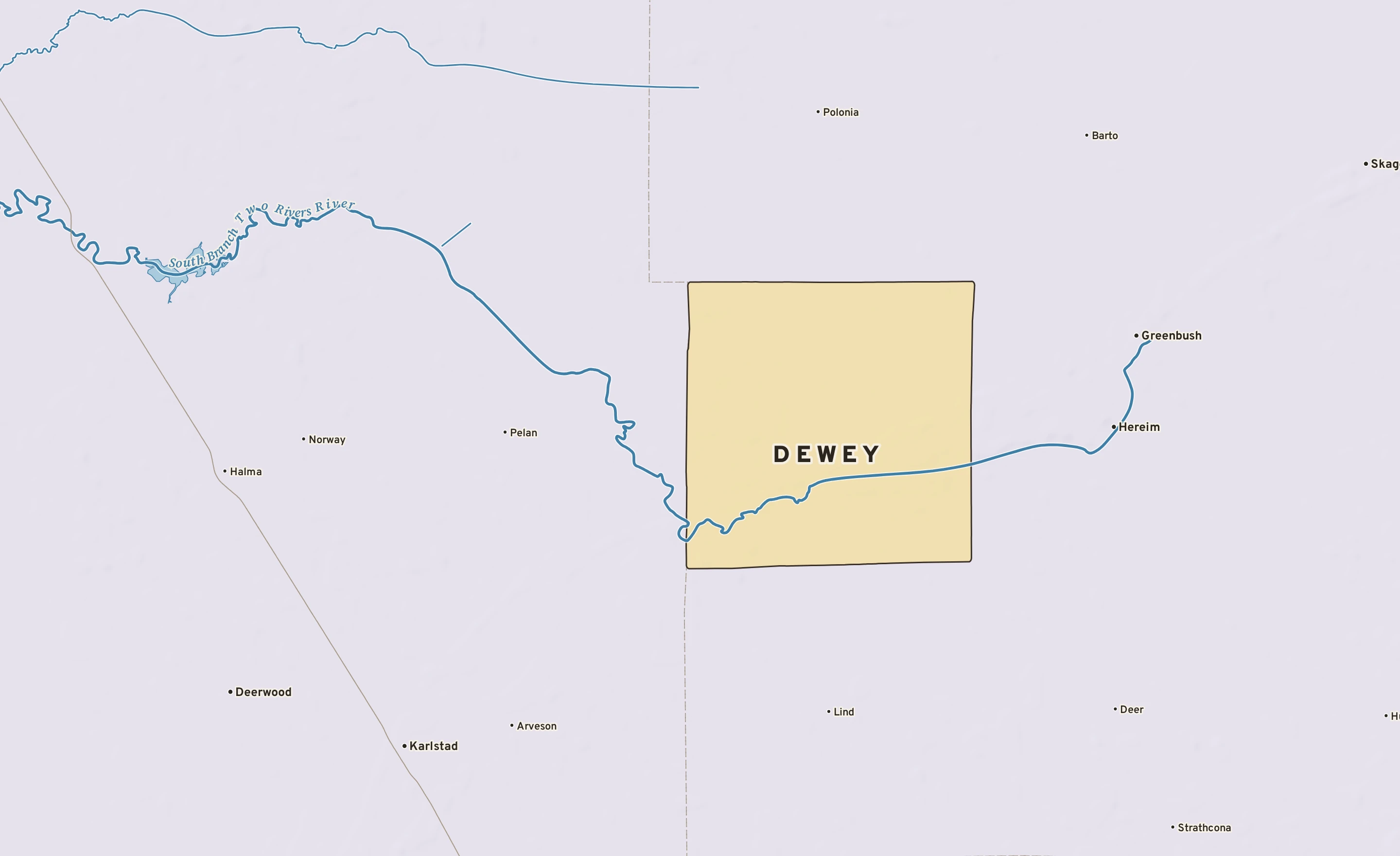

The Dewey plate. Relief from Copernicus GLO-30; rivers and lakes from USGS NHD; watersheds from the USGS Watershed Boundary Dataset; roads and city limits from Census TIGER 2024.
Mostly sunny
Mostly sunny; warmer
Partly cloudy
Mostly cloudy
Showers likely
Mostly cloudy
Chance of showers
Dewey’s center stands about 1,030 ft above sea level. Within three miles the land runs from 1,020 ft to 1,080 ft, a difference of 60 ft: nearly flat ground.
Under the town center the state geologic map shows Undifferentiated (conglomerate, sandstone, mudstone), from the Late Cretaceous, 72 to 100 million years old.
The section below crosses 7 rock units mapped at the surface.
Heights every 0.1 mile from the Copernicus GLO-90 surface model; vertical exaggeration about 64×. The colored band under the surface is the rock the state geologic map shows at the surface, not a picture of what lies beneath.
Conglomerate, sandstone, mudstone. Age: Late Cretaceous, 72 to 100 million years old. About 10 mi of the line.
Granodiorite, diorite. Age: Neoarchean, 2.5 to 2.8 billion years old. About 5 mi of the line.
Schist, paragneiss. Age: Neoarchean, 2.5 to 2.8 billion years old. About 4 mi of the line.
Gabbro, peridotite, pyroxenite. Age: Neoarchean, 2.5 to 2.8 billion years old. About 2 mi of the line.
Granitic. Age: Neoarchean, 2.5 to 2.8 billion years old. About 2 mi of the line.
Felsic-volcanic. Age: Neoarchean, 2.5 to 2.8 billion years old. About 1 mi of the line.
From the USGS State Geologic Map Compilation (Horton and others, 2017), the states’ geologic maps joined at a common scale. 1 smaller unit along the line are not listed.
Heights from Copernicus GLO-90 (a surface model: it includes buildings and tree canopy); summits from USGS GNIS; rivers from USGS NHDPlus HR; rock from the USGS State Geologic Map Compilation.
A raindrop that lands in Dewey reaches Hudson Bay by way of the South Branch Two Rivers, the Two Rivers, the Red River of the North and the Nelson: about 890 river miles. Past the border it runs north through Canada to Hudson Bay.
Lake on the way: Lake Winnipeg.
400 miles of the trip are on the Nelson.
Traced down the USGS NHDPlus V2.1 river network from the Census center point of Dewey; river miles along the main stem, rounded.
