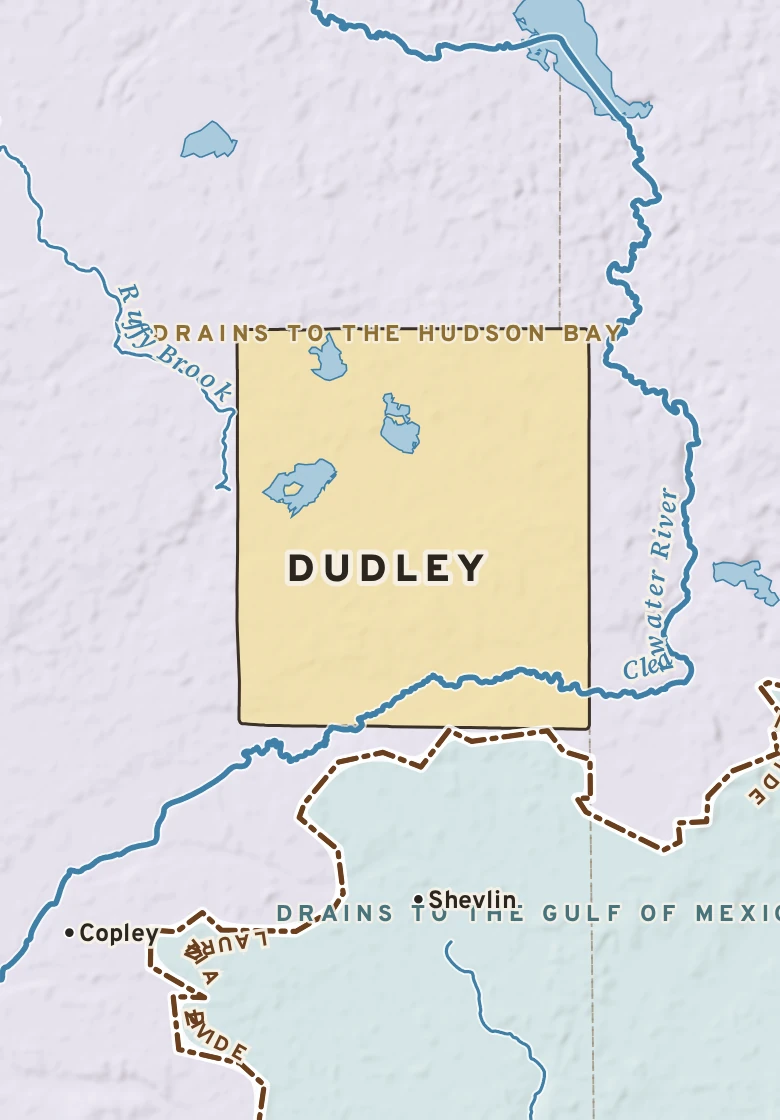

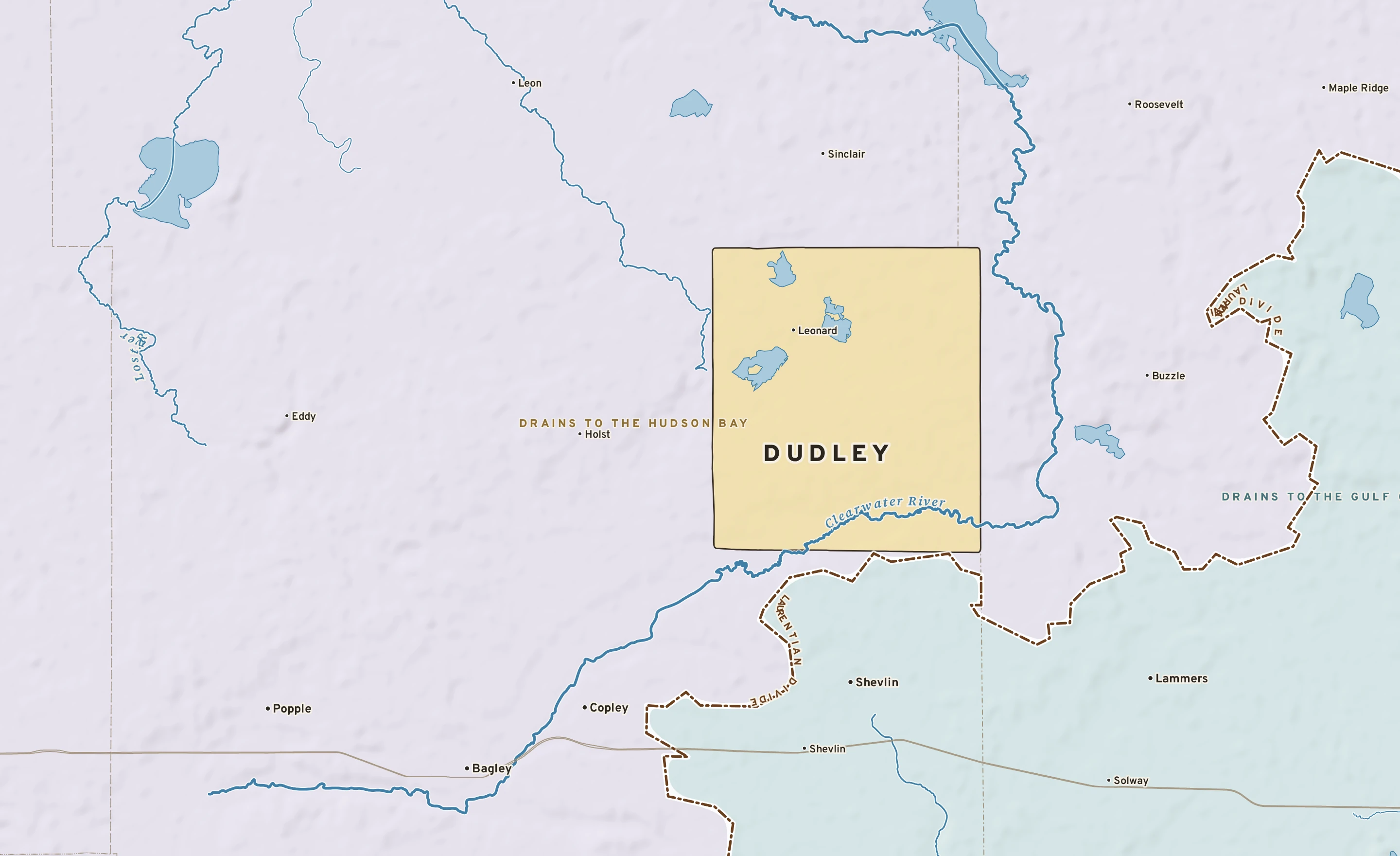

The Dudley plate. Relief from Copernicus GLO-30; rivers and lakes from USGS NHD; watersheds from the USGS Watershed Boundary Dataset; roads and city limits from Census TIGER 2024.
Dudley’s center stands about 1,490 ft above sea level. Within three miles the land runs from 1,420 ft to 1,530 ft, a difference of 110 ft: gently rolling country.
Under the town center the state geologic map shows Granitic intrusion, from the Neoarchean, 2.5 to 2.8 billion years old.
Heights every 0.1 mile from the Copernicus GLO-90 surface model; vertical exaggeration about 53×. The colored band under the surface is the rock the state geologic map shows at the surface, not a picture of what lies beneath.
Granitic. Age: Neoarchean, 2.5 to 2.8 billion years old. About 24 mi of the line.
From the USGS State Geologic Map Compilation (Horton and others, 2017), the states’ geologic maps joined at a common scale.
Heights from Copernicus GLO-90 (a surface model: it includes buildings and tree canopy); summits from USGS GNIS; rivers from USGS NHDPlus HR; rock from the USGS State Geologic Map Compilation.
A raindrop that lands in Dudley reaches Hudson Bay by way of Ruffy Brook, the Clearwater, the Red Lake, the Red River of the North and the Nelson: about 1,130 river miles. Past the border it runs north through Canada to Hudson Bay.
Lake on the way: Lake Winnipeg.
400 miles of the trip are on the Nelson.
Traced down the USGS NHDPlus V2.1 river network from the Census center point of Dudley; river miles along the main stem, rounded.
