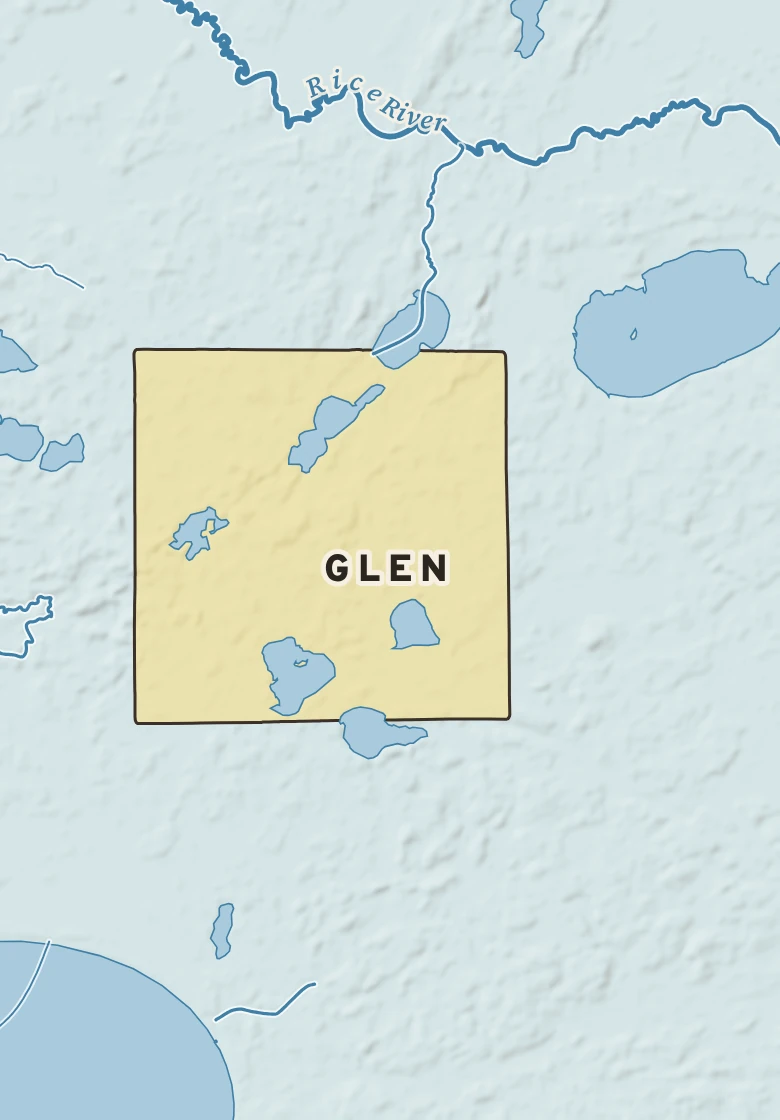

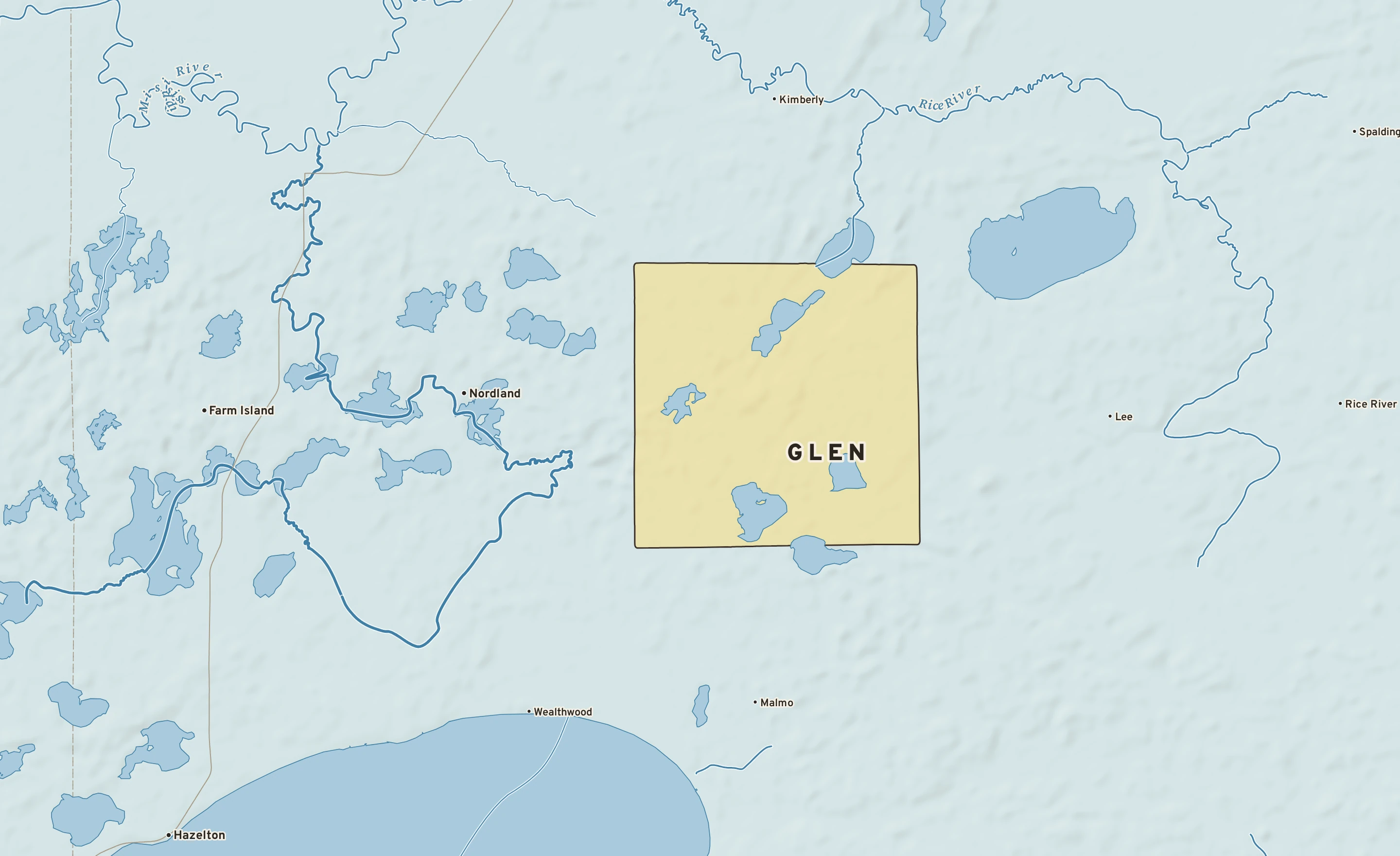

The Glen plate. Relief from Copernicus GLO-30; rivers and lakes from USGS NHD; watersheds from the USGS Watershed Boundary Dataset; roads and city limits from Census TIGER 2024.
Mostly sunny
Mostly sunny
Partly cloudy
Partly cloudy
Chance of showers
Partly cloudy
Showers likely
Glen’s center stands about 1,310 ft above sea level. Within three miles the land runs from 1,260 ft to 1,370 ft, a difference of 110 ft: gently rolling country.
The section below crosses 7 rock units mapped at the surface.
Heights every 0.1 mile from the Copernicus GLO-90 surface model; vertical exaggeration about 64×. The colored band under the surface is the rock the state geologic map shows at the surface, not a picture of what lies beneath.
Siltstone, graywacke, slate. Age: Paleoproterozoic, 1.6 to 2.5 billion years old. About 5 mi of the line.
Quartzite. Age: Paleoproterozoic, 1.6 to 2.5 billion years old. About 5 mi of the line.
Schist, slate. Age: Paleoproterozoic, 1.6 to 2.5 billion years old. About 5 mi of the line.
Volcanic, sedimentary, hypabyssal. Age: Paleoproterozoic, 1.6 to 2.5 billion years old. About 4 mi of the line.
Banded-iron-formation. Age: Paleoproterozoic, 1.6 to 2.5 billion years old. About 2 mi of the line.
Volcanic, sedimentary. Age: Paleoproterozoic, 1.6 to 2.5 billion years old. About 2 mi of the line.
From the USGS State Geologic Map Compilation (Horton and others, 2017), the states’ geologic maps joined at a common scale. 1 smaller unit along the line are not listed.
Heights from Copernicus GLO-90 (a surface model: it includes buildings and tree canopy); summits from USGS GNIS; rivers from USGS NHDPlus HR; rock from the USGS State Geologic Map Compilation.
A raindrop that lands in Glen reaches the Gulf of America by way of Dam Brook, the Rice and the Mississippi: about 2,110 river miles.
Lake on the way: Lake Pepin.
1,750 miles of the trip are on the Mississippi.
Traced down the USGS NHDPlus V2.1 river network from the Census center point of Glen; river miles along the main stem, rounded.
