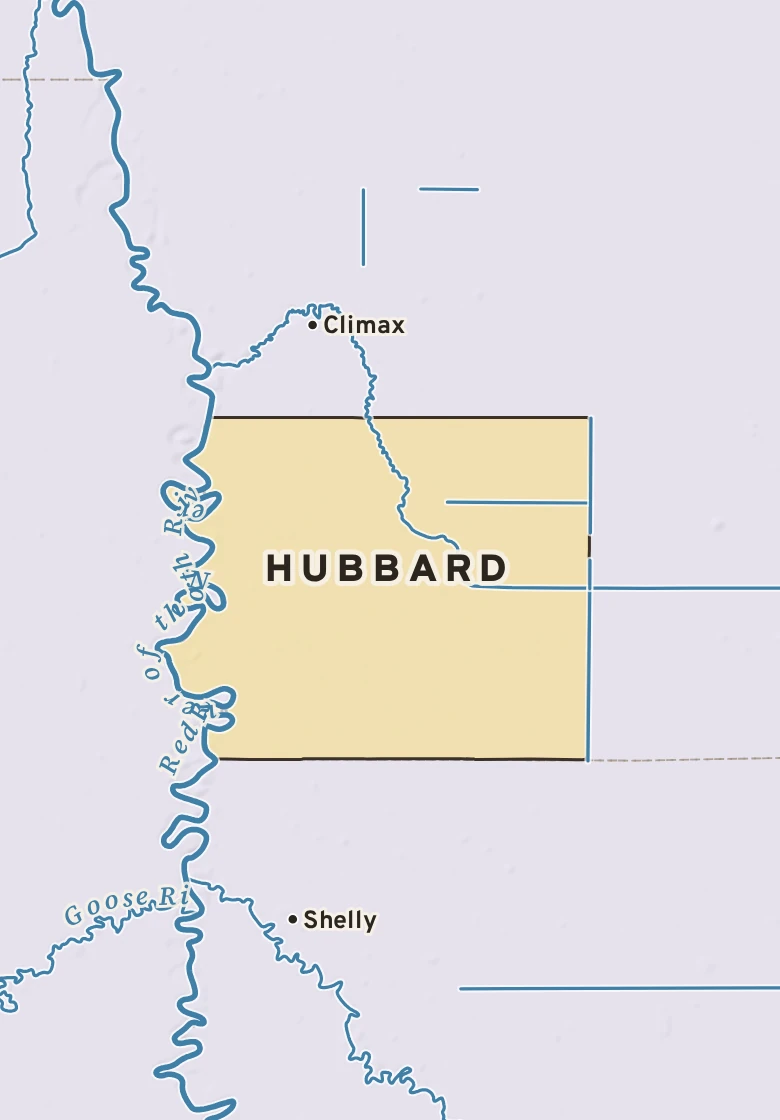

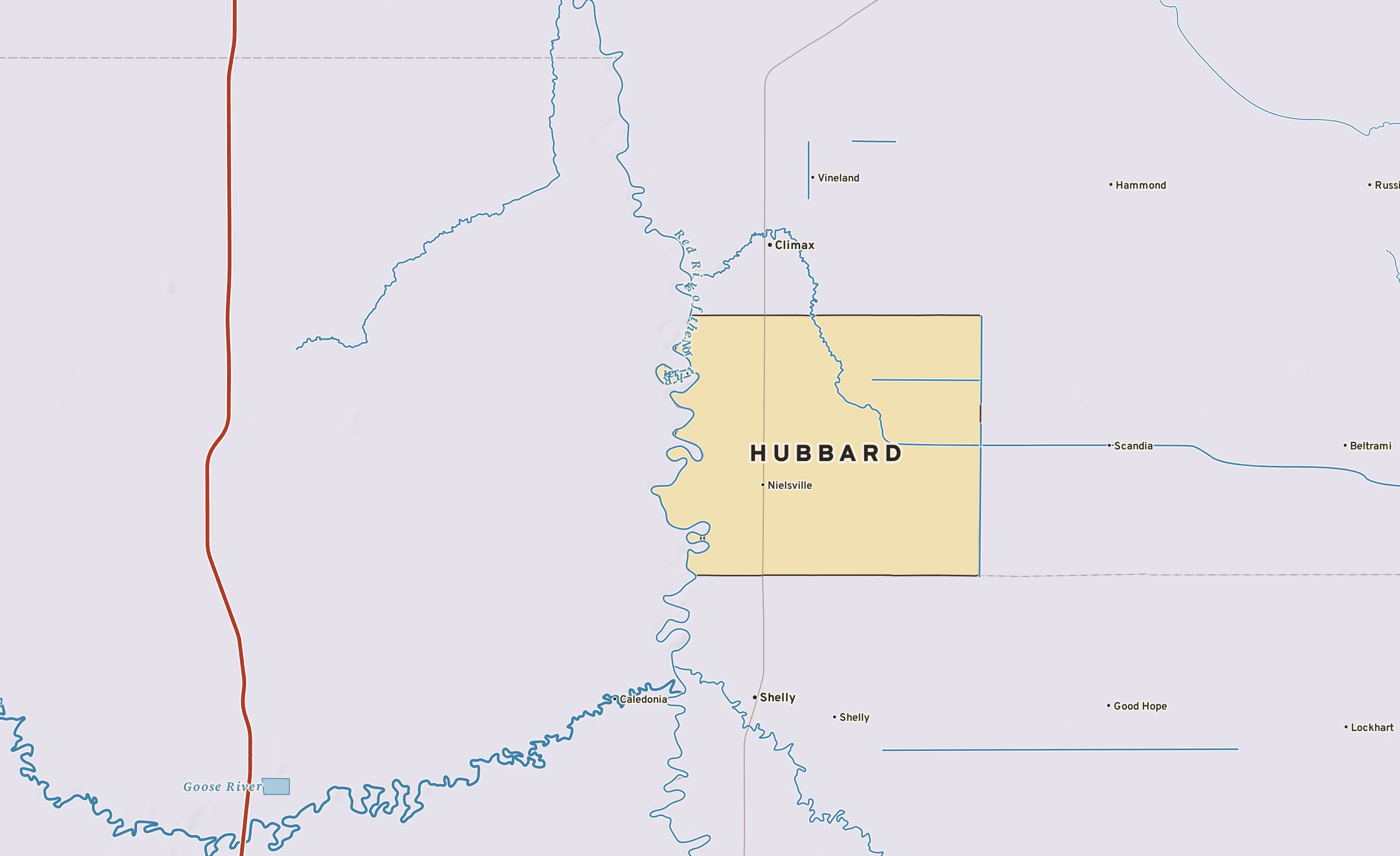

The Hubbard plate. Relief from Copernicus GLO-30; rivers and lakes from USGS NHD; watersheds from the USGS Watershed Boundary Dataset; roads and city limits from Census TIGER 2024.
Mostly sunny
Mostly sunny; warmer
Partly cloudy
Mostly cloudy
Chance of showers
Mostly cloudy; cooler
Showers likely
Hubbard’s center stands about 870 ft above sea level. Within three miles the land runs from 860 ft to 870 ft, a difference of 10 ft: nearly flat ground.
Under the town center the state geologic map shows Mafic metavolcanic rocks (metabasalt, greenstone), from the Neoarchean, 2.5 to 2.8 billion years old.
The section below crosses 8 rock units mapped at the surface.
Heights every 0.1 mile from the Copernicus GLO-90 surface model; vertical exaggeration about 64×. The colored band under the surface is the rock the state geologic map shows at the surface, not a picture of what lies beneath.
Granitic. Age: Neoarchean, 2.5 to 2.8 billion years old. About 7 mi of the line.
Age: Precambrian. About 6 mi of the line.
Metabasalt, greenstone. Age: Neoarchean, 2.5 to 2.8 billion years old. About 4 mi of the line.
Conglomerate, sandstone, mudstone. Age: Late Cretaceous, 72 to 100 million years old. About 3 mi of the line.
Schist. Age: Neoarchean, 2.5 to 2.8 billion years old. About 2 mi of the line.
Shale, sandstone. Age: Early Cretaceous to Late Cretaceous, 66 to 145 million years old. About 2 mi of the line.
From the USGS State Geologic Map Compilation (Horton and others, 2017), the states’ geologic maps joined at a common scale. 2 smaller units along the line are not listed.
Heights from Copernicus GLO-90 (a surface model: it includes buildings and tree canopy); summits from USGS GNIS; rivers from USGS NHDPlus HR; rock from the USGS State Geologic Map Compilation.
A raindrop that lands in Hubbard reaches Hudson Bay by way of the Sand Hill, the Red River of the North and the Nelson: about 990 river miles. Past the border it runs north through Canada to Hudson Bay.
Lake on the way: Lake Winnipeg.
400 miles of the trip are on the Nelson.
Traced down the USGS NHDPlus V2.1 river network from the Census center point of Hubbard; river miles along the main stem, rounded.
