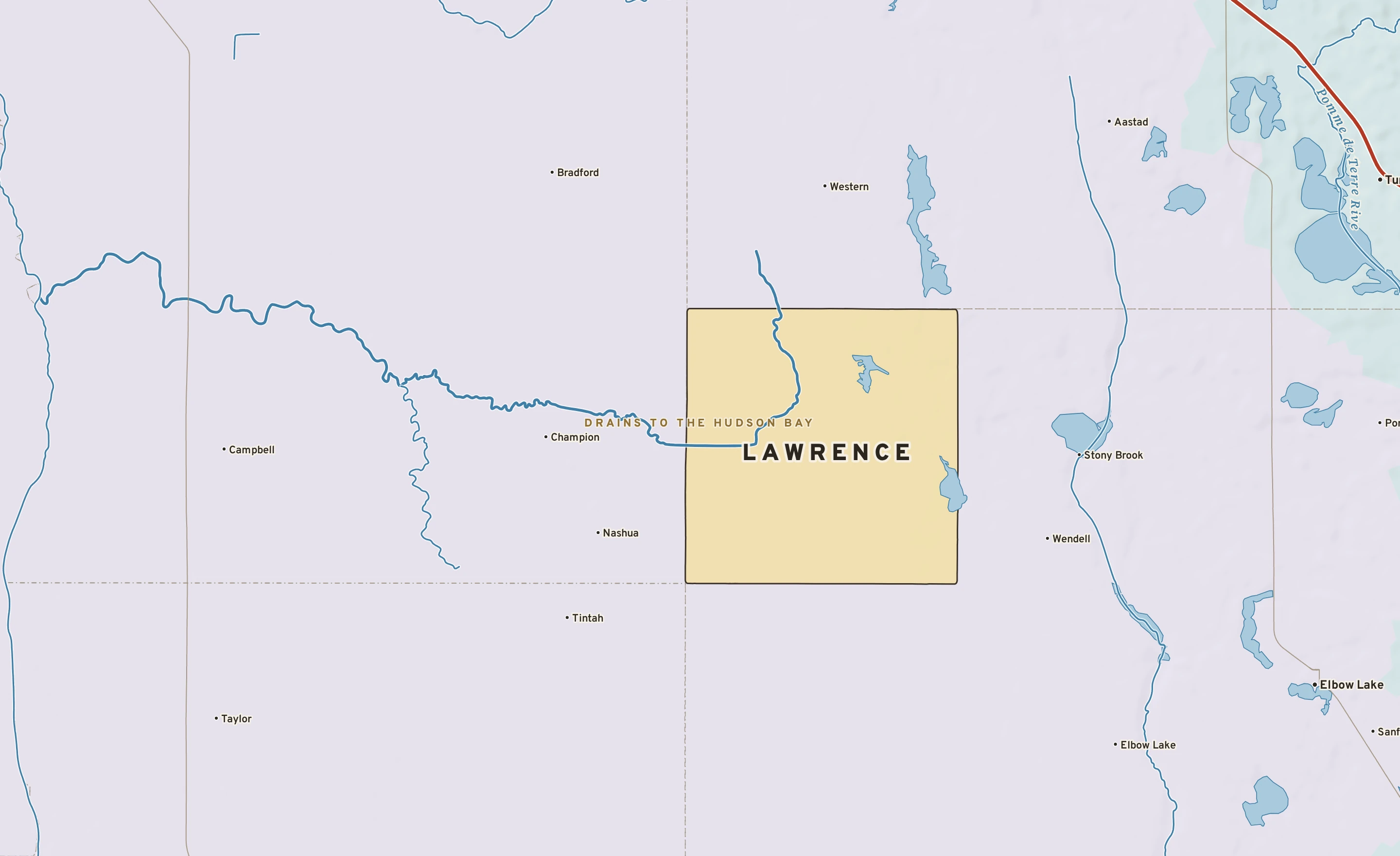

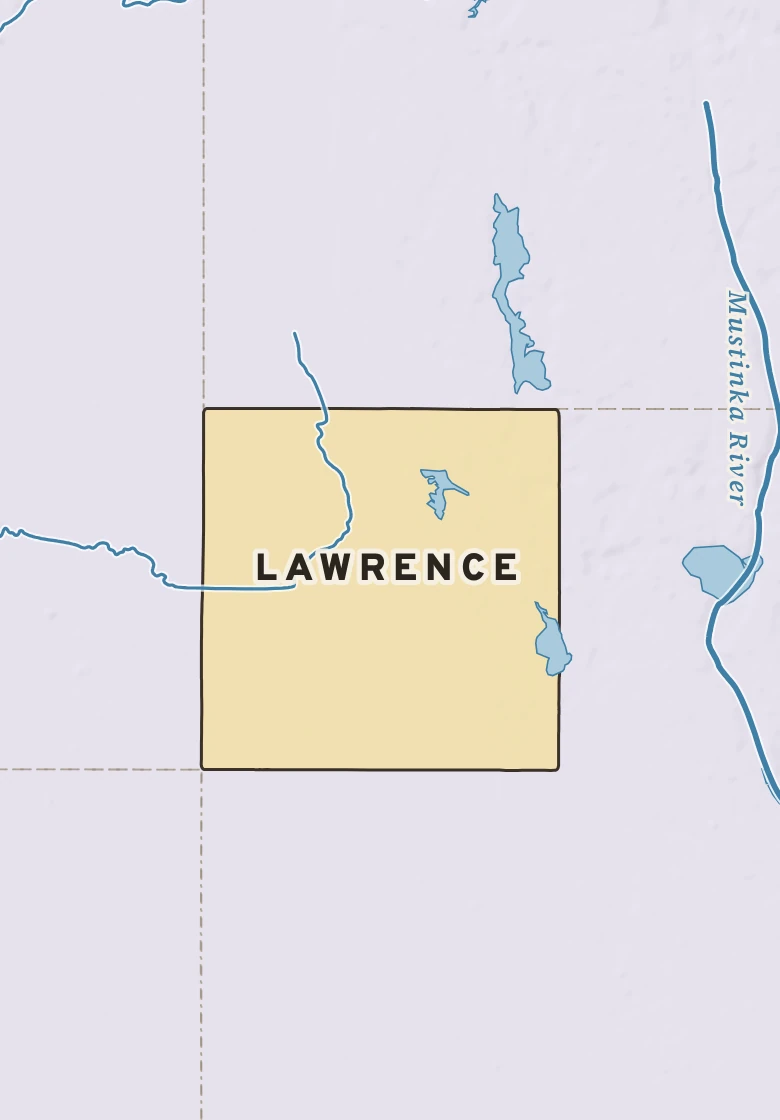

The Lawrence plate. Relief from Copernicus GLO-30; rivers and lakes from USGS NHD; watersheds from the USGS Watershed Boundary Dataset; roads and city limits from Census TIGER 2024.
Mostly sunny
Mostly sunny; warmer
Mostly sunny
Partly cloudy
Chance of showers
Partly cloudy; cooler
Showers likely
Lawrence’s center stands about 1,040 ft above sea level. Within three miles the land runs from 1,010 ft to 1,110 ft, a difference of 100 ft: gently rolling country.
Under the town center the state geologic map shows Foliated to gneissic tonalite, granodiorite, and diorite (tonalite, granodiorite, diorite), from the Neoarchean, 2.5 to 2.8 billion years old.
The section below crosses 4 rock units mapped at the surface.
Heights every 0.1 mile from the Copernicus GLO-90 surface model; vertical exaggeration about 64×. The colored band under the surface is the rock the state geologic map shows at the surface, not a picture of what lies beneath.
Conglomerate, sandstone, mudstone. Age: Late Cretaceous, 72 to 100 million years old. About 11 mi of the line.
Metabasalt, greenstone. Age: Neoarchean, 2.5 to 2.8 billion years old. About 11 mi of the line.
Tonalite, granodiorite, diorite. Age: Neoarchean, 2.5 to 2.8 billion years old. About 2 mi of the line.
Felsic-volcanic. Age: Neoarchean, 2.5 to 2.8 billion years old. About 0.3 mi of the line.
From the USGS State Geologic Map Compilation (Horton and others, 2017), the states’ geologic maps joined at a common scale.
Heights from Copernicus GLO-90 (a surface model: it includes buildings and tree canopy); summits from USGS GNIS; rivers from USGS NHDPlus HR; rock from the USGS State Geologic Map Compilation.
A raindrop that lands in Lawrence reaches Hudson Bay by way of the Rabbit, the Bois de Sioux, the Red River of the North and the Nelson: about 1,240 river miles. Past the border it runs north through Canada to Hudson Bay.
Lake on the way: Lake Winnipeg.
550 miles of the trip are on the Red River of the North.
Traced down the USGS NHDPlus V2.1 river network from the Census center point of Lawrence; river miles along the main stem, rounded.
