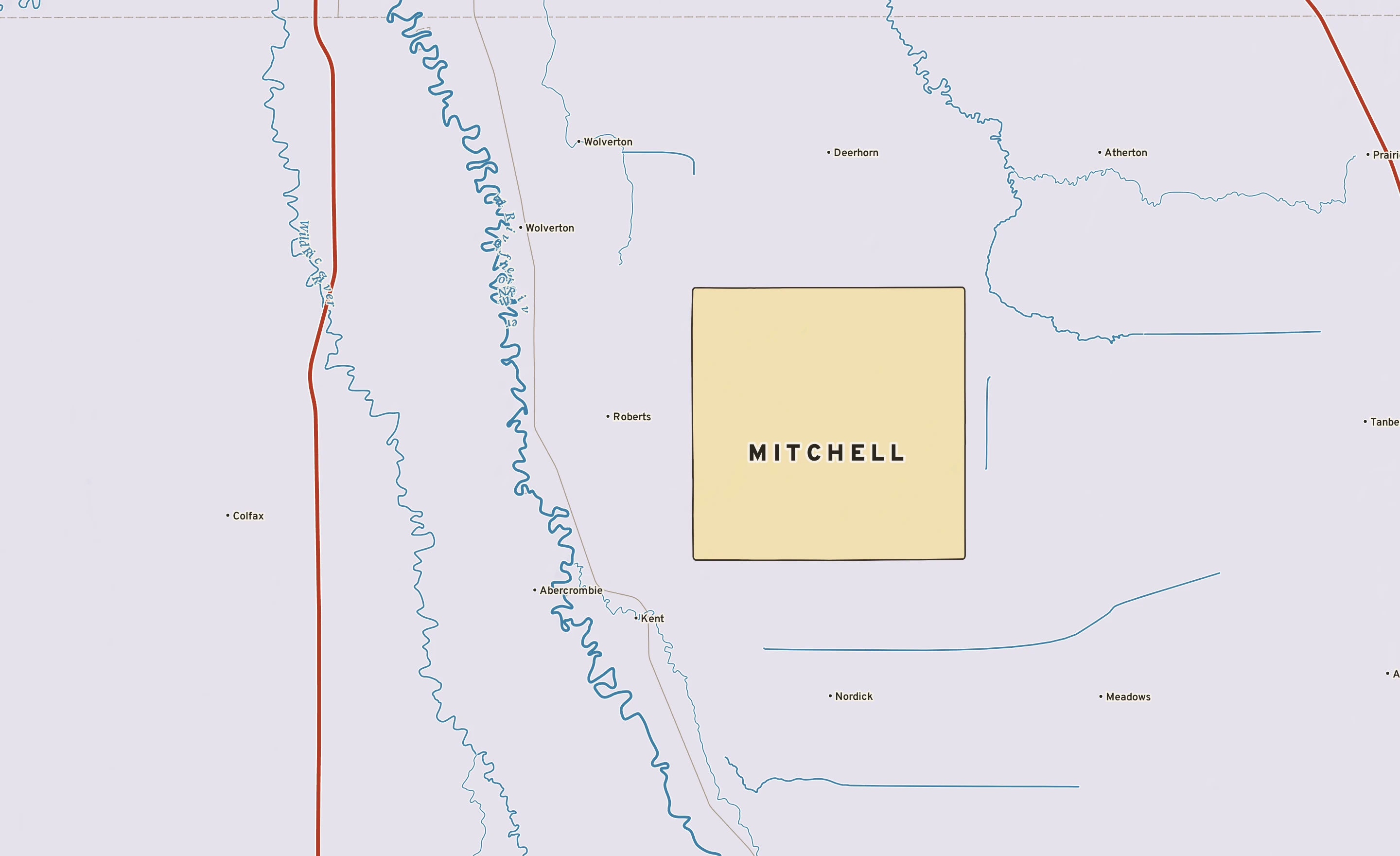

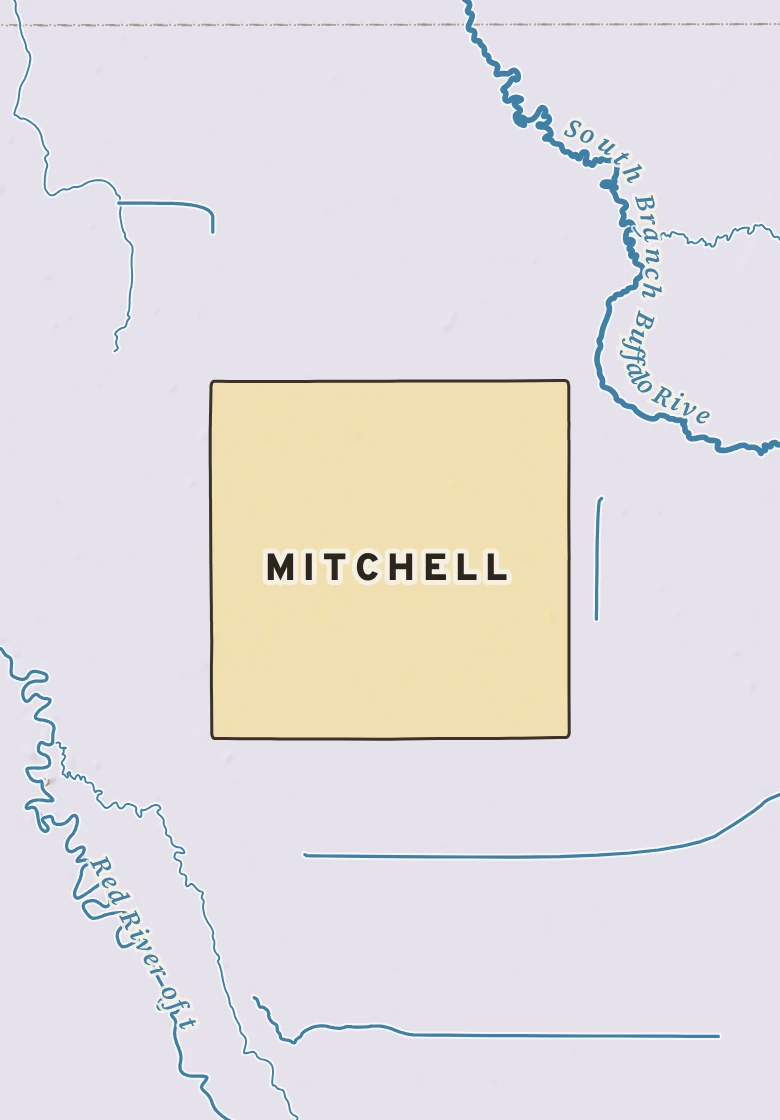

The Mitchell plate. Relief from Copernicus GLO-30; rivers and lakes from USGS NHD; watersheds from the USGS Watershed Boundary Dataset; roads and city limits from Census TIGER 2024.
Sunny
Mostly sunny; warmer
Mostly sunny
Partly cloudy
Chance of showers
Partly cloudy; cooler
Showers likely
Mitchell’s center stands about 960 ft above sea level. Within three miles the land runs from 950 ft to 980 ft, a difference of 30 ft: nearly flat ground.
Under the town center the state geologic map shows Granitic intrusion, from the Neoarchean, 2.5 to 2.8 billion years old.
The section below crosses 7 rock units mapped at the surface.
Heights every 0.1 mile from the Copernicus GLO-90 surface model; vertical exaggeration about 64×. The colored band under the surface is the rock the state geologic map shows at the surface, not a picture of what lies beneath.
Granitic. Age: Neoarchean, 2.5 to 2.8 billion years old. About 9 mi of the line.
Metabasalt, greenstone. Age: Neoarchean, 2.5 to 2.8 billion years old. About 7 mi of the line.
Shale, sandstone. Age: Early Cretaceous to Late Cretaceous, 66 to 145 million years old. About 3 mi of the line.
Age: Precambrian. About 3 mi of the line.
Gabbro, peridotite, pyroxenite. Age: Neoarchean, 2.5 to 2.8 billion years old. About 2 mi of the line.
Plutonic. Age: Archean. About 0.7 mi of the line.
From the USGS State Geologic Map Compilation (Horton and others, 2017), the states’ geologic maps joined at a common scale. 1 smaller unit along the line are not listed.
Heights from Copernicus GLO-90 (a surface model: it includes buildings and tree canopy); summits from USGS GNIS; rivers from USGS NHDPlus HR; rock from the USGS State Geologic Map Compilation.
A raindrop that lands in Mitchell reaches Hudson Bay by way of Wolverton Creek, the Red River of the North and the Nelson: about 1,140 river miles. Past the border it runs north through Canada to Hudson Bay.
Lake on the way: Lake Winnipeg.
480 miles of the trip are on the Red River of the North.
Traced down the USGS NHDPlus V2.1 river network from the Census center point of Mitchell; river miles along the main stem, rounded.
