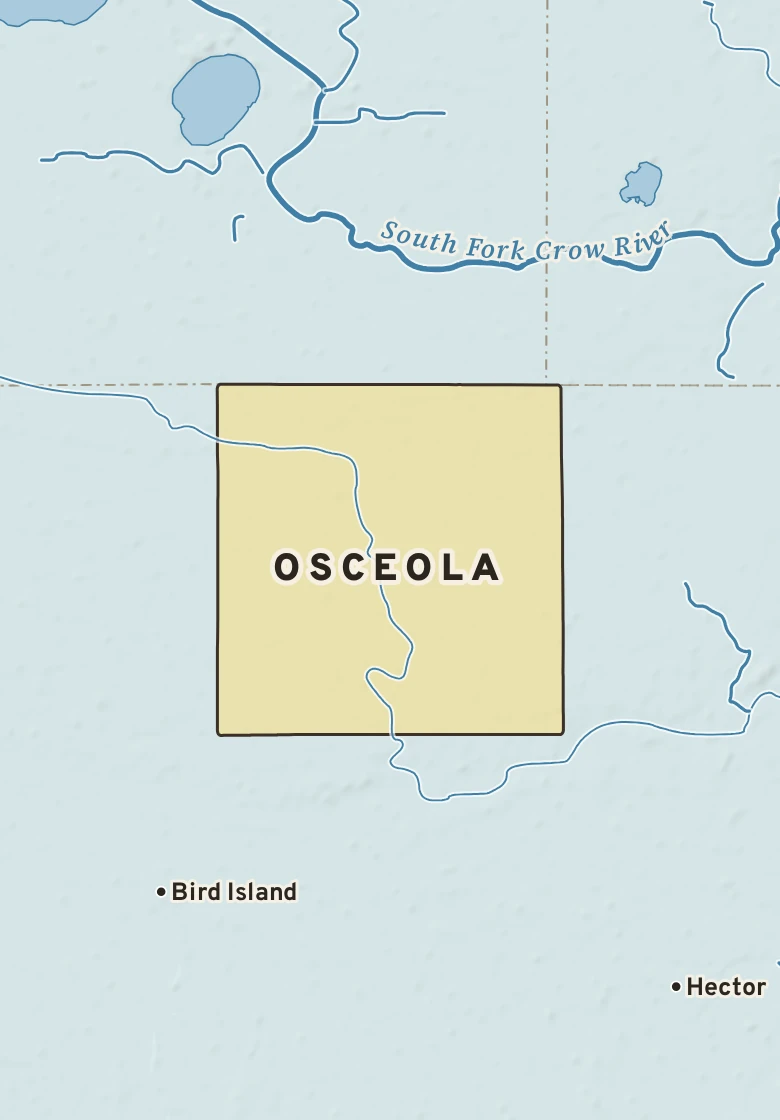

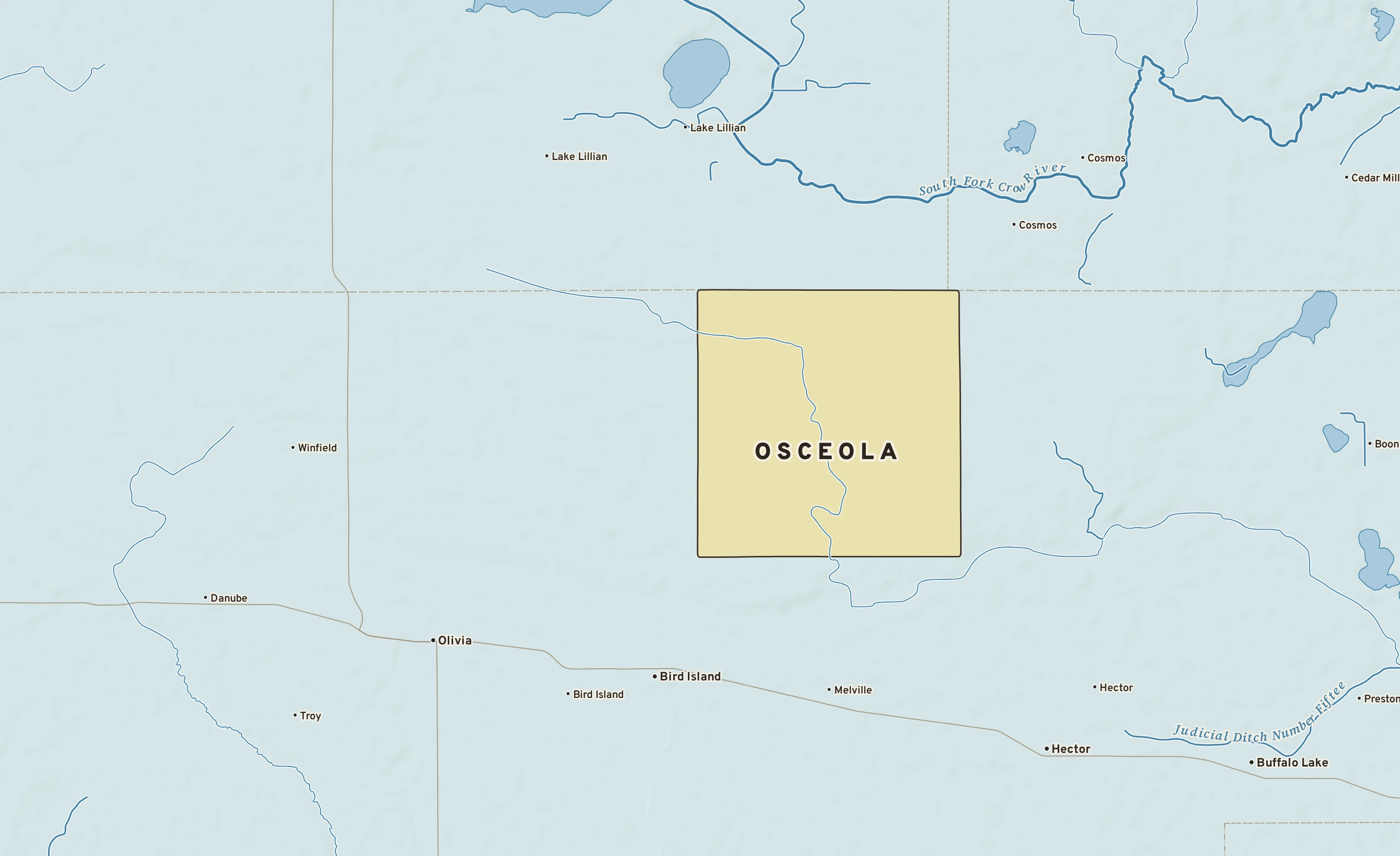

The Osceola plate. Relief from Copernicus GLO-30; rivers and lakes from USGS NHD; watersheds from the USGS Watershed Boundary Dataset; roads and city limits from Census TIGER 2024.
Osceola’s center stands about 1,100 ft above sea level. Within three miles the land runs from 1,100 ft to 1,130 ft, a difference of 30 ft: nearly flat ground.
Under the town center the state geologic map shows Leucogranite (leucocratic-granitic), from the Neoarchean, 2.5 to 2.8 billion years old.
The section below crosses 6 rock units mapped at the surface.
Heights every 0.1 mile from the Copernicus GLO-90 surface model; vertical exaggeration about 64×. The colored band under the surface is the rock the state geologic map shows at the surface, not a picture of what lies beneath.
Tonalite, granodiorite, diorite. Age: Neoarchean, 2.5 to 2.8 billion years old. About 8 mi of the line.
Schist, slate. Age: Paleoproterozoic, 1.6 to 2.5 billion years old. About 7 mi of the line.
Leucocratic-granitic. Age: Neoarchean, 2.5 to 2.8 billion years old. About 5 mi of the line.
Mylonite, gneiss, schist. Age: Paleoproterozoic, 1.6 to 2.5 billion years old. About 3 mi of the line.
Orthogneiss, migmatite. Age: Paleoarchean to Mesoarchean, 2.8 to 3.6 billion years old. About 0.8 mi of the line.
Gabbroic, dioritic. Age: Archean to Paleoproterozoic. About 0.7 mi of the line.
From the USGS State Geologic Map Compilation (Horton and others, 2017), the states’ geologic maps joined at a common scale.
Heights from Copernicus GLO-90 (a surface model: it includes buildings and tree canopy); summits from USGS GNIS; rivers from USGS NHDPlus HR; rock from the USGS State Geologic Map Compilation.
A raindrop that lands in Osceola reaches the Gulf of America by way of Buffalo Creek, the South Fork Crow, the Crow and the Mississippi: about 1,990 river miles.
Lake on the way: Lake Pepin.
Traced down the USGS NHDPlus V2.1 river network from the Census center point of Osceola; river miles along the main stem, rounded.
