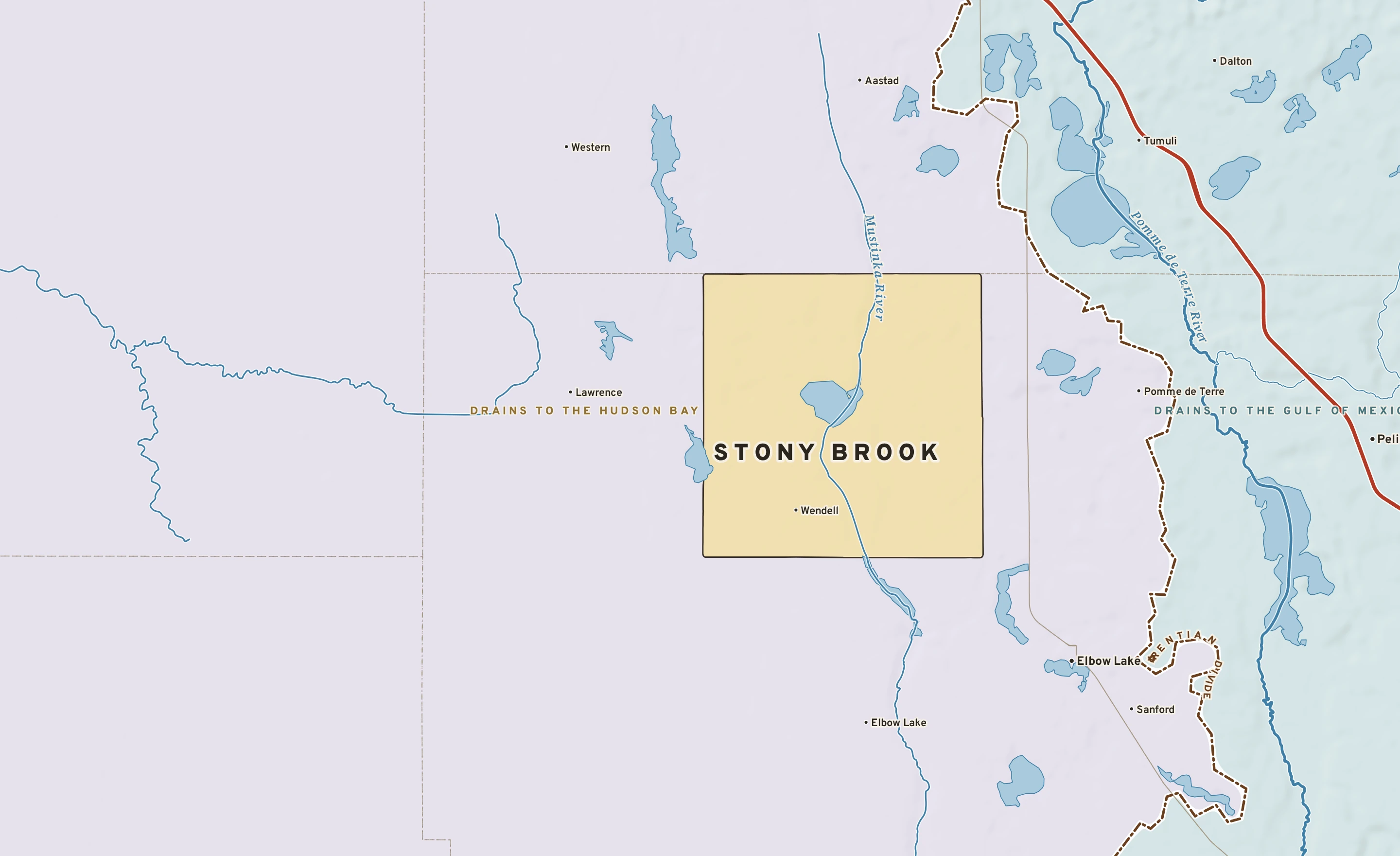

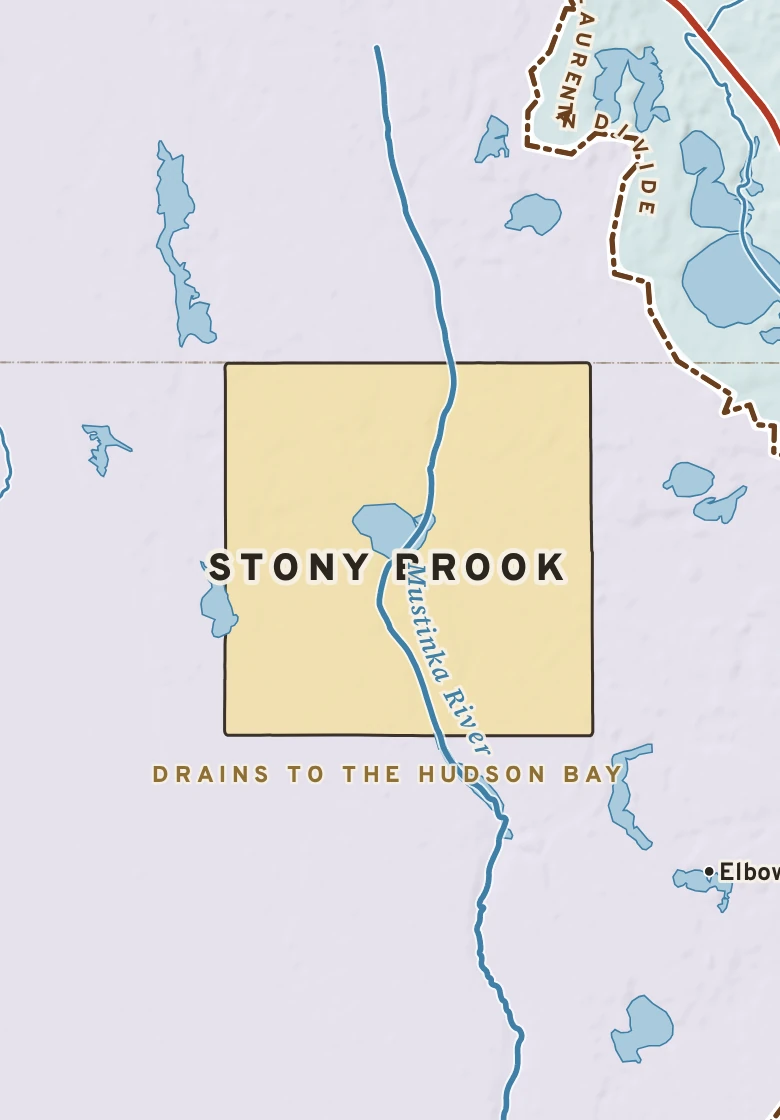

The Stony Brook plate. Relief from Copernicus GLO-30; rivers and lakes from USGS NHD; watersheds from the USGS Watershed Boundary Dataset; roads and city limits from Census TIGER 2024.
Mostly sunny
Mostly sunny; warmer
Mostly sunny
Partly cloudy
Chance of showers
Partly cloudy; cooler
Showers likely
Stony Brook’s center stands about 1,100 ft above sea level. Within three miles the land runs from 1,070 ft to 1,170 ft, a difference of 100 ft: gently rolling country.
Under the town center the state geologic map shows Foliated to gneissic tonalite, granodiorite, and diorite (tonalite, granodiorite, diorite), from the Neoarchean, 2.5 to 2.8 billion years old.
The section below crosses 5 rock units mapped at the surface.
Heights every 0.1 mile from the Copernicus GLO-90 surface model; vertical exaggeration about 52×. The colored band under the surface is the rock the state geologic map shows at the surface, not a picture of what lies beneath.
Tonalite, granodiorite, diorite. Age: Neoarchean, 2.5 to 2.8 billion years old. About 12 mi of the line.
Metabasalt, greenstone. Age: Neoarchean, 2.5 to 2.8 billion years old. About 5 mi of the line.
Conglomerate, sandstone, mudstone. Age: Late Cretaceous, 72 to 100 million years old. About 3 mi of the line.
Felsic-volcanic. Age: Neoarchean, 2.5 to 2.8 billion years old. About 3 mi of the line.
Granitic. Age: Neoarchean, 2.5 to 2.8 billion years old. About 1 mi of the line.
From the USGS State Geologic Map Compilation (Horton and others, 2017), the states’ geologic maps joined at a common scale.
Heights from Copernicus GLO-90 (a surface model: it includes buildings and tree canopy); summits from USGS GNIS; rivers from USGS NHDPlus HR; rock from the USGS State Geologic Map Compilation.
A raindrop that lands in Stony Brook reaches Hudson Bay by way of the Mustinka, the Bois de Sioux, the Red River of the North and the Nelson: about 1,300 river miles. Past the border it runs north through Canada to Hudson Bay.
Lakes on the way: Lake Traverse and Lake Winnipeg.
550 miles of the trip are on the Red River of the North.
Traced down the USGS NHDPlus V2.1 river network from the Census center point of Stony Brook; river miles along the main stem, rounded.
