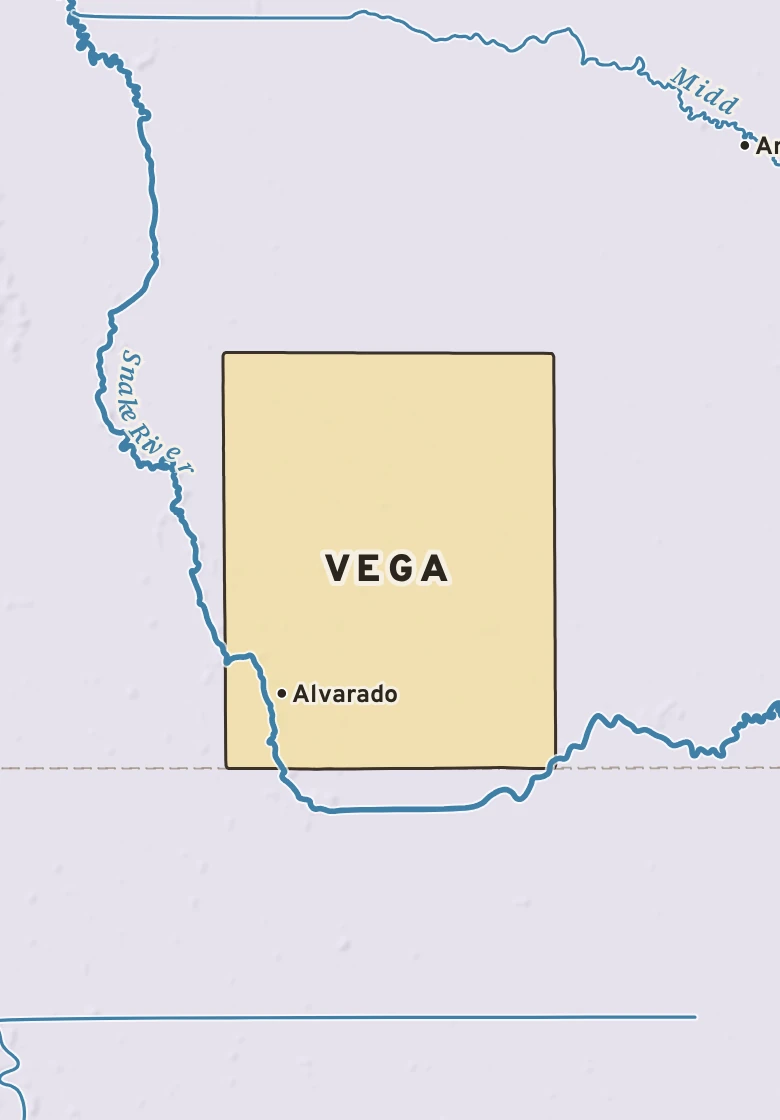

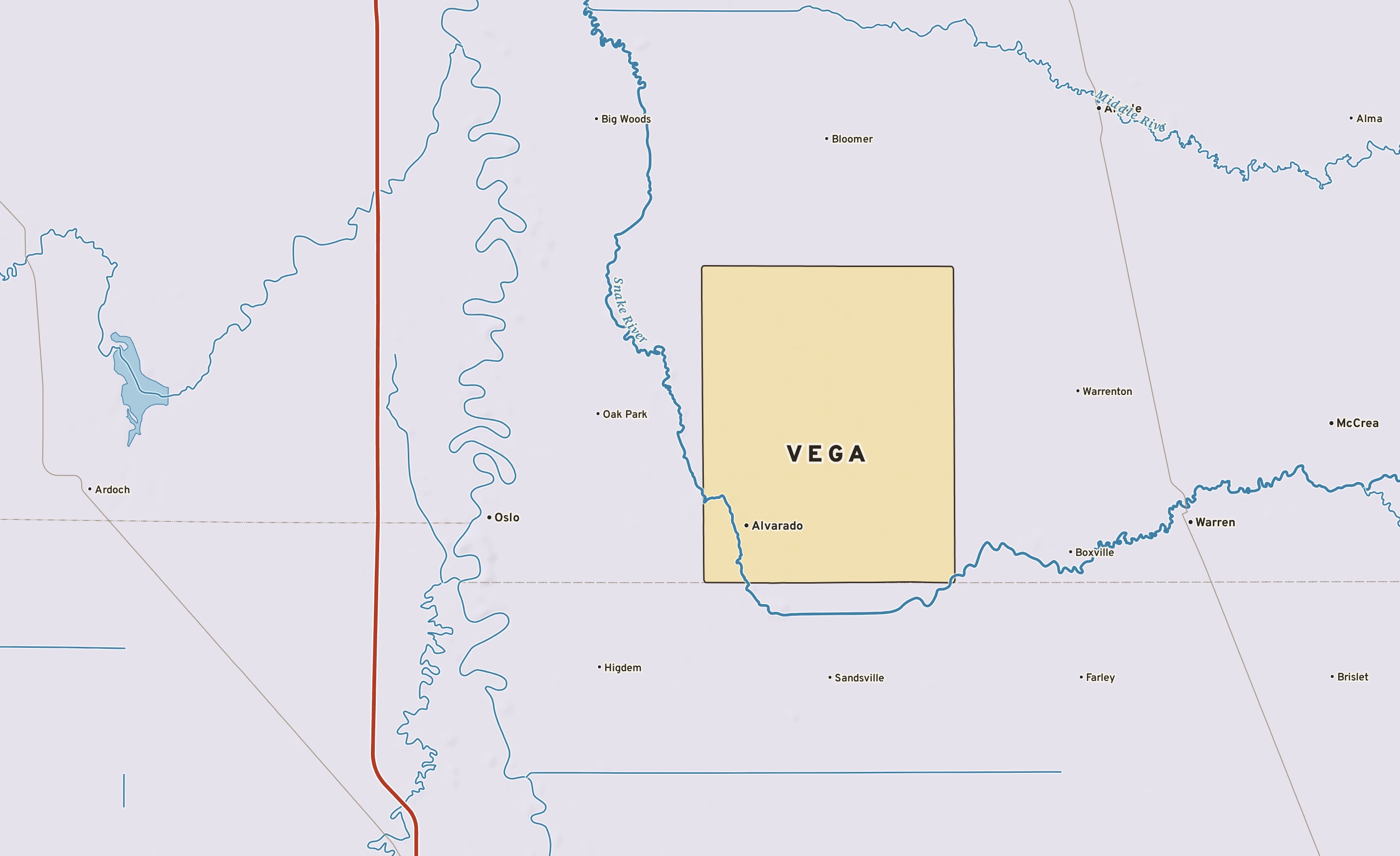

The Vega plate. Relief from Copernicus GLO-30; rivers and lakes from USGS NHD; watersheds from the USGS Watershed Boundary Dataset; roads and city limits from Census TIGER 2024.
Mostly sunny
Mostly sunny
Partly cloudy; warmer
Mostly cloudy
Chance of showers
Mostly cloudy
Chance of showers
Vega’s center stands about 810 ft above sea level. Within three miles the land runs from 800 ft to 820 ft, a difference of 20 ft: nearly flat ground.
Under the town center the state geologic map shows Undifferentiated (conglomerate, sandstone, mudstone), from the Late Cretaceous, 72 to 100 million years old.
The section below crosses 4 rock units mapped at the surface.
Heights every 0.1 mile from the Copernicus GLO-90 surface model; vertical exaggeration about 64×. The colored band under the surface is the rock the state geologic map shows at the surface, not a picture of what lies beneath.
Conglomerate, sandstone, mudstone. Age: Late Cretaceous, 72 to 100 million years old. About 11 mi of the line.
Limestone, dolostone. Age: Late Ordovician, 445 to 459 million years old. About 5 mi of the line.
Sandstone, shale. Age: Early Cretaceous, 100 to 145 million years old. About 4 mi of the line.
Tonalite, granodiorite, diorite. Age: Neoarchean, 2.5 to 2.8 billion years old. About 4 mi of the line.
From the USGS State Geologic Map Compilation (Horton and others, 2017), the states’ geologic maps joined at a common scale.
Heights from Copernicus GLO-90 (a surface model: it includes buildings and tree canopy); summits from USGS GNIS; rivers from USGS NHDPlus HR; rock from the USGS State Geologic Map Compilation.
A raindrop that lands in Vega reaches Hudson Bay by way of the Snake, the Red River of the North and the Nelson: about 900 river miles. Past the border it runs north through Canada to Hudson Bay.
Lake on the way: Lake Winnipeg.
400 miles of the trip are on the Nelson.
Traced down the USGS NHDPlus V2.1 river network from the Census center point of Vega; river miles along the main stem, rounded.
