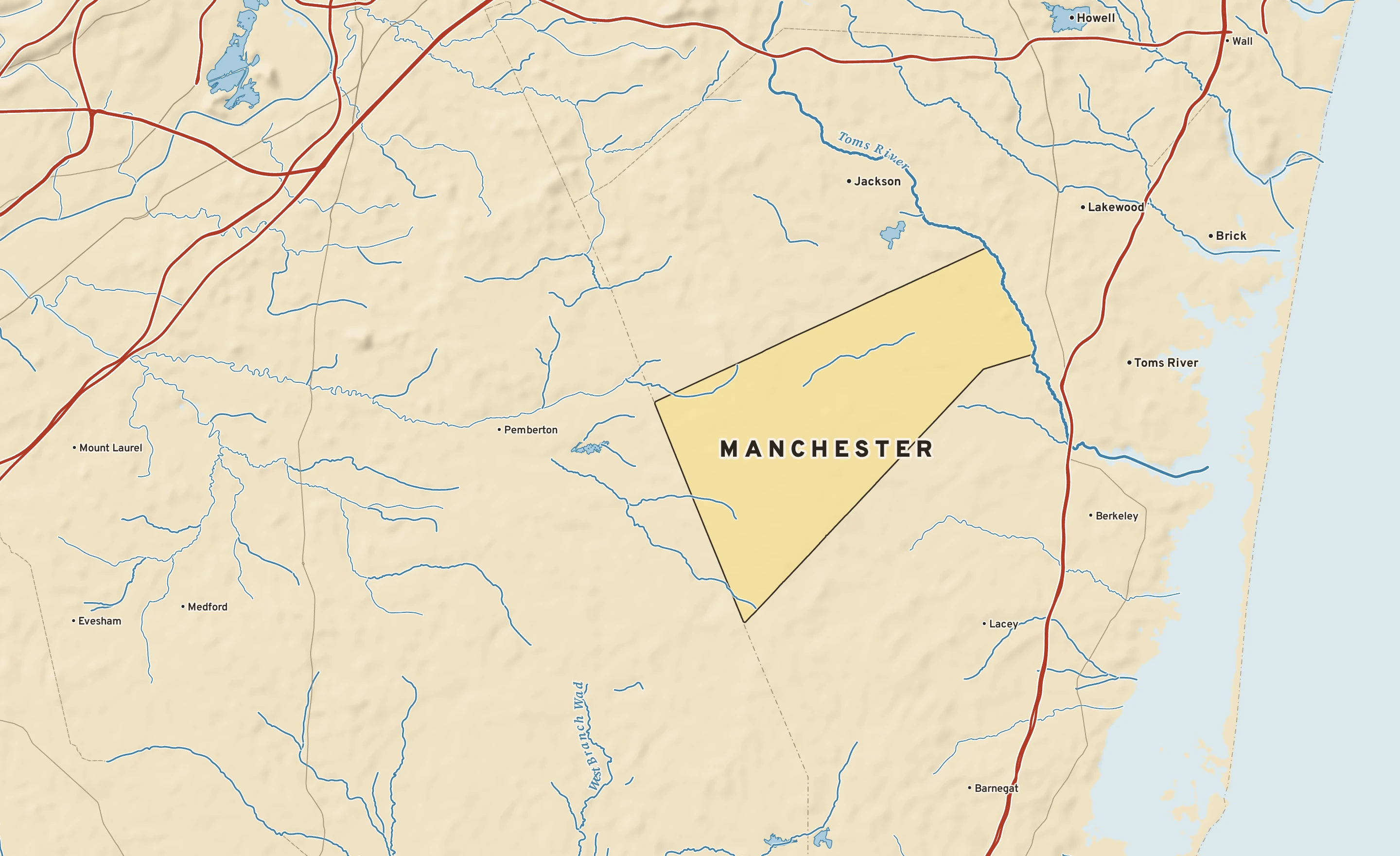

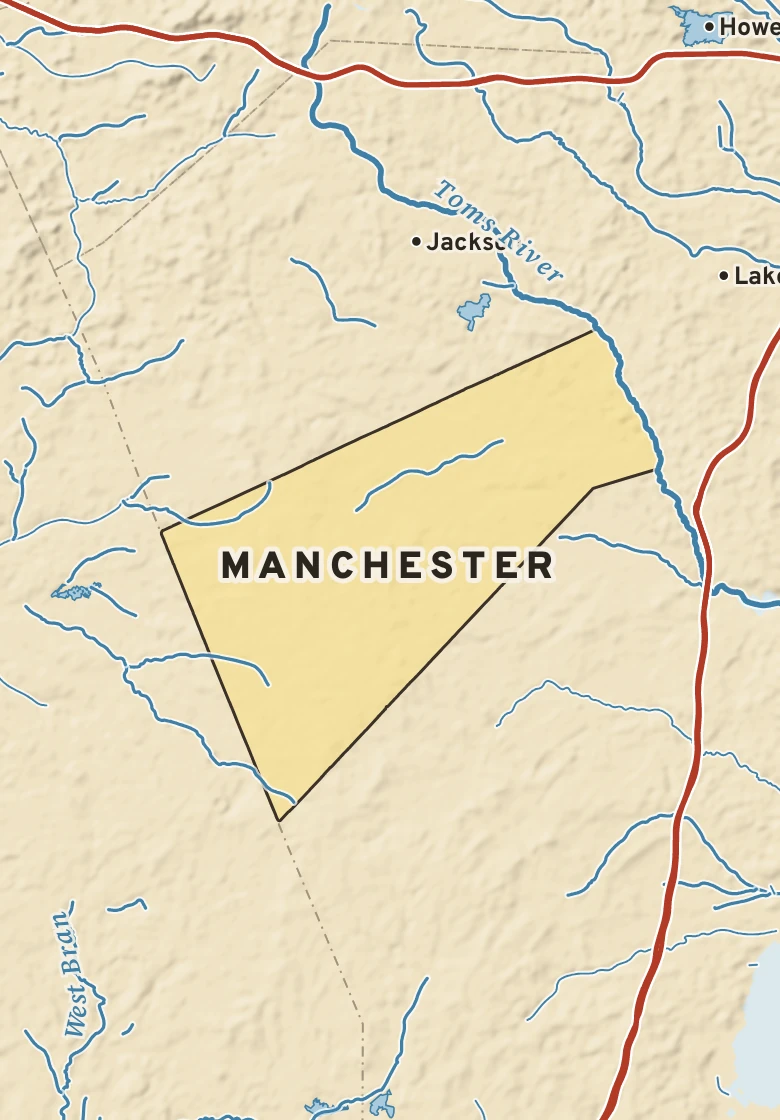

The Manchester plate. Relief from Copernicus GLO-30; rivers and lakes from USGS NHD; watersheds from the USGS Watershed Boundary Dataset; roads and city limits from Census TIGER 2024.
Partly cloudy
Mostly sunny; warmer
Partly cloudy
Mostly sunny
Sunny
Mostly sunny
Mostly sunny
Manchester’s center stands about 180 ft above sea level. Within three miles the land runs from 80 ft to 200 ft, a difference of 120 ft: gently rolling country.
Under the town center the state geologic map shows Cohansey Formation (sand), from the Middle Miocene, 12 to 14 million years old.
The section below crosses 3 rock units mapped at the surface.
Heights every 0.1 mile from the Copernicus GLO-90 surface model; vertical exaggeration about 64×. The colored band under the surface is the rock the state geologic map shows at the surface, not a picture of what lies beneath.
Sand. Age: Middle Miocene, 12 to 14 million years old. About 19 mi of the line.
Clay, sand. Age: Early Miocene, 16 to 23 million years old. About 4 mi of the line.
Sand. Age: Middle Paleocene, 59 to 62 million years old. About 1 mi of the line.
From the USGS State Geologic Map Compilation (Horton and others, 2017), the states’ geologic maps joined at a common scale.
Heights from Copernicus GLO-90 (a surface model: it includes buildings and tree canopy); summits from USGS GNIS; rivers from USGS NHDPlus HR; rock from the USGS State Geologic Map Compilation.
A raindrop that lands in Manchester reaches the Atlantic Ocean by way of Davenport Branch, Wrangle Brook and the Toms: about 17 river miles.
Traced down the USGS NHDPlus V2.1 river network from the Census center point of Manchester; river miles along the main stem, rounded.
