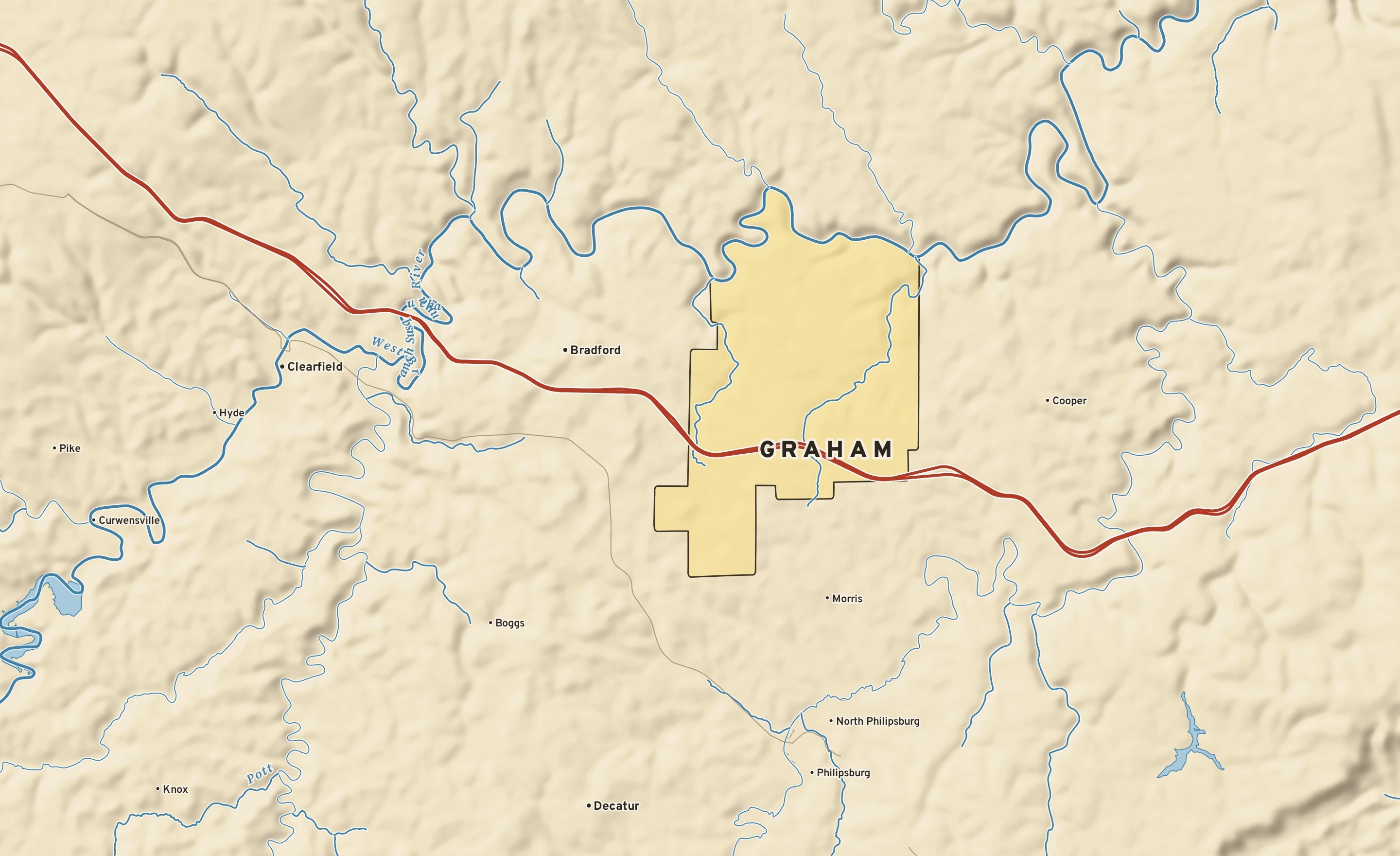

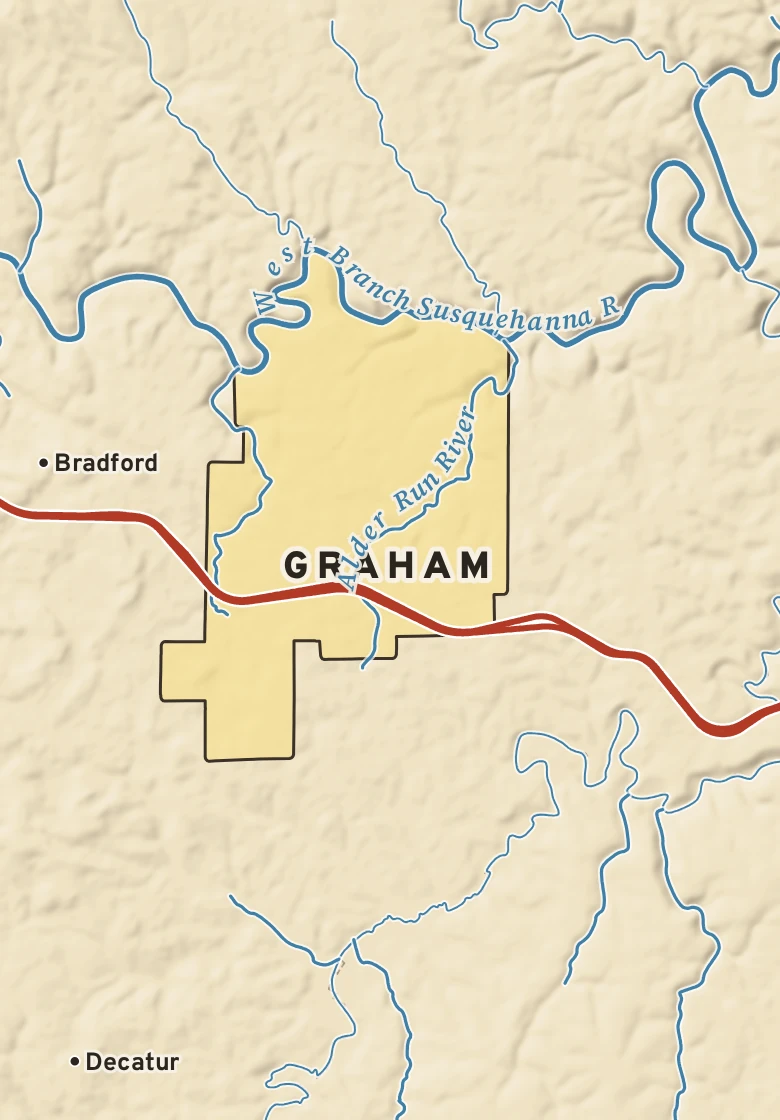

The Graham plate. Relief from Copernicus GLO-30; rivers and lakes from USGS NHD; watersheds from the USGS Watershed Boundary Dataset; roads and city limits from Census TIGER 2024.
Mostly cloudy
Mostly cloudy
Mostly cloudy
Partly cloudy
Sunny
Partly cloudy
Mostly sunny
Graham’s center stands about 1,670 ft above sea level. Within three miles the land runs from 1,350 ft to 1,770 ft, a difference of 420 ft: hilly country. The highest named summit within 15 miles is Big Knob, about 2,340 ft, 12 miles north-northwest.
The section below crosses 4 rock units mapped at the surface.
Heights every 0.1 mile from the Copernicus GLO-90 surface model; vertical exaggeration about 15×. The colored band under the surface is the rock the state geologic map shows at the surface, not a picture of what lies beneath.
Sandstone. Age: Carboniferous, 299 to 324 million years old. About 11 mi of the line.
Sandstone, conglomerate. Age: Carboniferous, 299 to 324 million years old. About 6 mi of the line.
Sandstone. Age: Carboniferous, 324 to 359 million years old. About 5 mi of the line.
Shale, siltstone, sandstone. Age: Carboniferous, 324 to 359 million years old. About 3 mi of the line.
From the USGS State Geologic Map Compilation (Horton and others, 2017), the states’ geologic maps joined at a common scale.
Heights from Copernicus GLO-90 (a surface model: it includes buildings and tree canopy); summits from USGS GNIS; rivers from USGS NHDPlus HR; rock from the USGS State Geologic Map Compilation.
A raindrop that lands in Graham reaches Chesapeake Bay and the Atlantic Ocean by way of Alder Run, the West Branch Susquehanna and the Susquehanna: about 280 river miles.
Lake on the way: Lake Aldred.
140 miles of the trip are on the West Branch Susquehanna.
Traced down the USGS NHDPlus V2.1 river network from the Census center point of Graham; river miles along the main stem, rounded.
