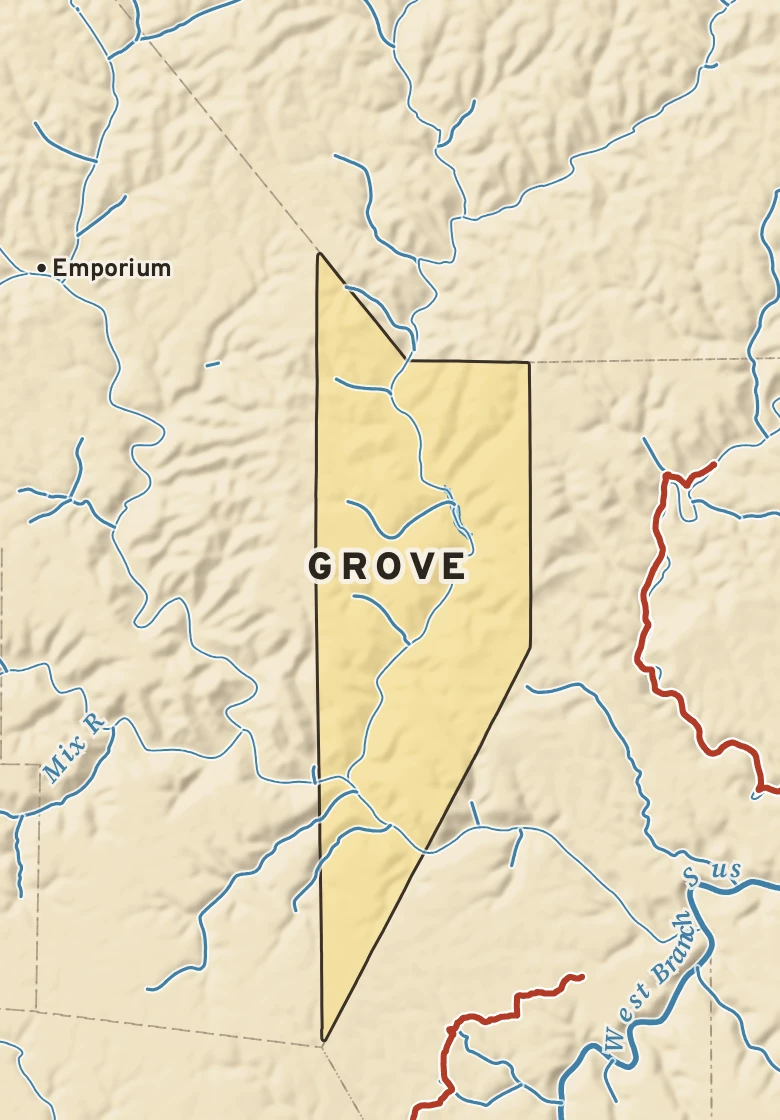

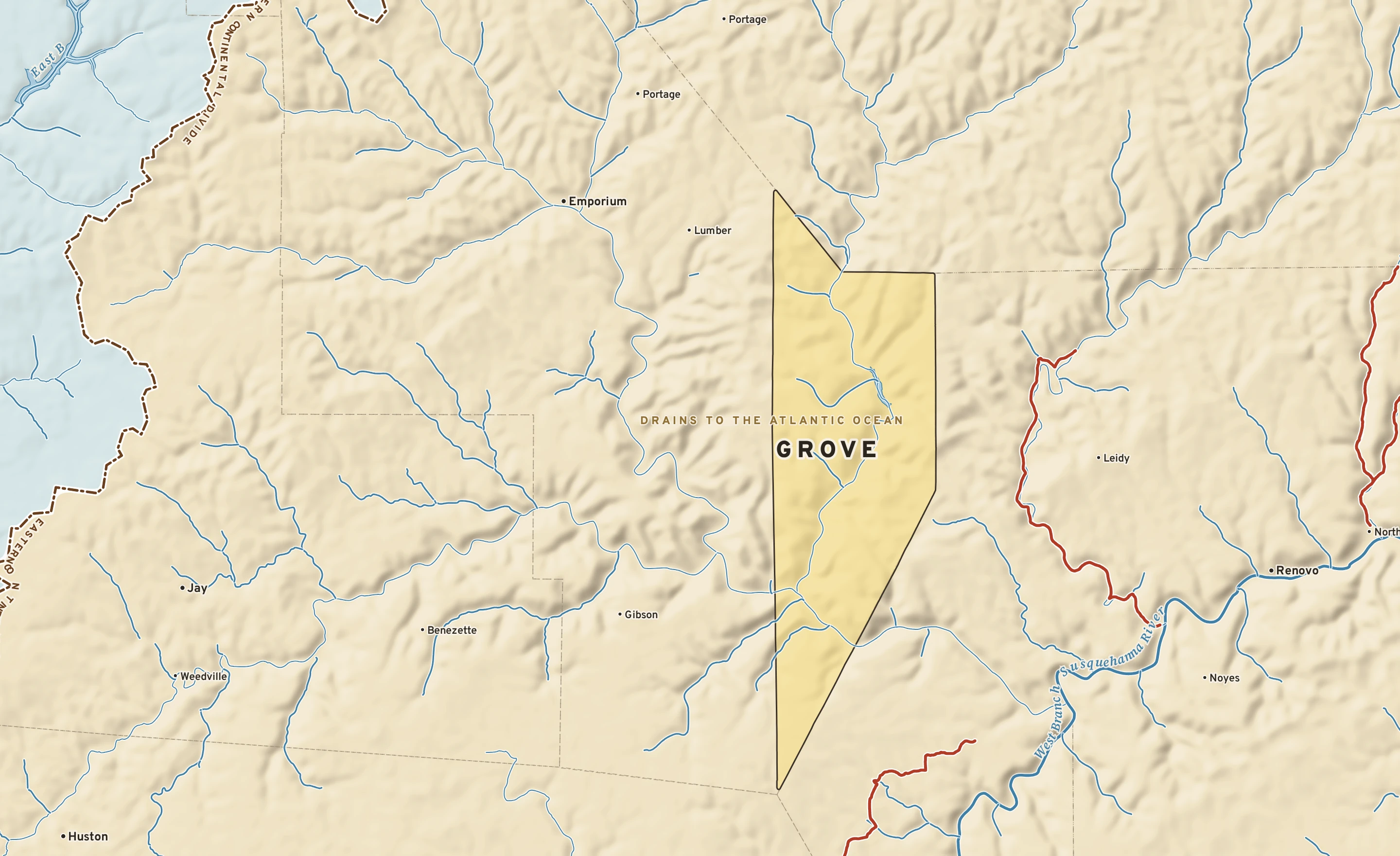

The Grove plate. Relief from Copernicus GLO-30; rivers and lakes from USGS NHD; watersheds from the USGS Watershed Boundary Dataset; roads and city limits from Census TIGER 2024.
Chance of showers
Mostly cloudy
Mostly cloudy
Sunny
Mostly sunny
Partly cloudy
Partly cloudy
Grove’s center stands about 2,050 ft above sea level. Within three miles the land runs from 870 ft to 2,280 ft, a difference of 1,410 ft: steep hill country. The highest named summit within 15 miles is Whittimore Hill, about 2,240 ft, 12 miles west-northwest.
Under the town center the state geologic map shows Pottsville Formation (sandstone, conglomerate), from the Carboniferous, 299 to 324 million years old.
The section below crosses 5 rock units mapped at the surface.
Heights every 0.1 mile from the Copernicus GLO-90 surface model; vertical exaggeration about 13×. The colored band under the surface is the rock the state geologic map shows at the surface, not a picture of what lies beneath.
Sandstone, siltstone. Age: Devonian to Carboniferous, 324 to 422 million years old. About 9 mi of the line.
Sandstone, conglomerate. Age: Carboniferous, 299 to 324 million years old. About 8 mi of the line.
Sandstone, siltstone, shale. Age: Late Devonian, 359 to 384 million years old. About 4 mi of the line.
Sandstone. Age: Carboniferous, 324 to 359 million years old. About 2 mi of the line.
Sandstone. Age: Carboniferous, 299 to 324 million years old. About 0.8 mi of the line.
From the USGS State Geologic Map Compilation (Horton and others, 2017), the states’ geologic maps joined at a common scale.
Heights from Copernicus GLO-90 (a surface model: it includes buildings and tree canopy); summits from USGS GNIS; rivers from USGS NHDPlus HR; rock from the USGS State Geologic Map Compilation.
A raindrop that lands in Grove reaches Chesapeake Bay and the Atlantic Ocean by way of Gravelly Run, Lick Island Run, First Fork Sinnemahoning Creek, Sinnemahoning Creek, the West Branch Susquehanna and the Susquehanna: about 260 river miles.
Lake on the way: Lake Aldred.
110 miles of the trip are on the West Branch Susquehanna.
Traced down the USGS NHDPlus V2.1 river network from the Census center point of Grove; river miles along the main stem, rounded.
